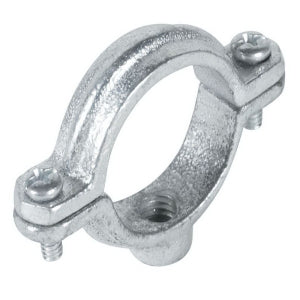

Macomb Group B3198RZ-3/8 Pltd Extension Split Clamp 3/8 Rod Thrd

Product Description

The MACOMB GROUP B3198RZ-3/8 is a bolt thread extension split clamp from the Series B3198R. Constructed from malleable iron with an electro-galvanized finish, it conforms to industry standards MSS ANSI/SP-69, SP-58 Type 12, and Federal Specification A-A-1192A Type 12. Designed for use with a 3/8-16 UNC rod size and has a nominal size of 3/8 IN.

• Constructed from malleable iron for durability.
• Features an electro-galvanized finish for corrosion resistance.
• Complies with MSS ANSI/SP-69, SP-58 Type 12, and Federal Specification A-A-1192A Type 12 standards.

Product Highlights

This extension split clamp is ideal for non-insulated stationary pipe lines in horizontal or vertical positions.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: B3198RZ-3/8

Technical Specifications

• Series/Model: Series B3198R
• Nominal Size: 3/8 IN
• Rod Size: 3/8-16 UNC
• Material: Malleable Iron
• Finish/Color: Electro-Galvanized
• Type: Bolt Thread
• Maximum Load: 180 LB
• Item Name: Extension Split Clamp
• Other Physical Dimension: 13/16 IN Center To Top
• Industry Standards: MSS ANSI/SP-69 And SP-58 Type 12, Federal Specification A-A-1192A Type 12
