Macomb Group B3198RZ-1 Pltd Extension Split Clamp 3/8 Rod Thrd

Product Description

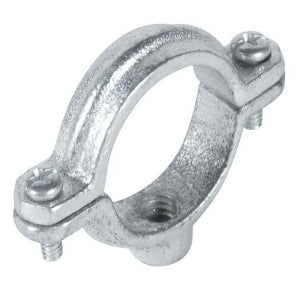

The MACOMB GROUP B3198RZ-1 is a bolt thread extension split clamp. Constructed from malleable iron with an electro-galvanized finish, this clamp is designed for non-insulated stationary pipe lines in horizontal or vertical positions. It adheres to industry standards MSS ANSI/SP-69 and SP-58 Type 12, and Federal Specification A-A-1192A Type 12.

• Bolt Thread Extension Split Clamp
• Electro-Galvanized Finish
• Malleable Iron Construction

Product Highlights

Electro-galvanized malleable iron thread extension split clamp for supporting non-insulated stationary pipe lines.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: B3198RZ-1

Technical Specifications

• Series/Model: Series B3198R
• Nominal Size: 1 IN
• Rod Size: 3/8-16 UNC
• Material: Malleable Iron
• Material Standard: Coating: ASTM B633
• Industry Standards: MSS ANSI/SP-69 And SP-58 Type 12, Federal Specification A-A-1192A Type 12
• Finish/Color: Electro-Galvanized
• Other Physical Dimension: 1-1/8 IN Center To Top
• Maximum Load: 180 LB
