Macomb Group B3198HCT-3/4 Copper Tube Hinged Split Ring

Product Description

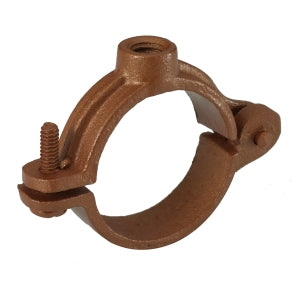

The MACOMB GROUP B3198HCT-3/4 is a copper tubing hinged extension split clamp. Constructed from malleable iron with a DURA-COPPER finish, it conforms to industry standards MSS ANSI/SP-69 and SP-58 Type 12, as well as Federal Specification A-A-1192A Type 12. It is designed for non-insulated stationary pipe lines in either a horizontal or vertical position.

• Hinged design allows for a quick installation
• Nominal Size: 3/4 IN
• Rod Size: 3/8-16 UNC

Product Highlights

This hinged split ring is designed for quick installation on copper tubing, making it suitable for supporting non-insulated pipes.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: B3198HCT-3/4

Technical Specifications

• Series/Model: Series B3198HCT
• Nominal Size: 3/4 IN
• Rod Size: 3/8-16 UNC
• Material: Malleable Iron
• Industry Standards: MSS ANSI/SP-69 And SP-58 Type 12, Federal Specification A-A-1192A Type 12
• Finish/Color: DURA-COPPER™
• Other Physical Dimension: 7/8 IN Center To Top
• Item Name: Extension Split Clamp
• Type: Copper Tubing, Hinged
• Maximum Load: 180 LB
