Macomb Group B3198HCT 2 Copper Tube Hinged Split Ring

Product Description

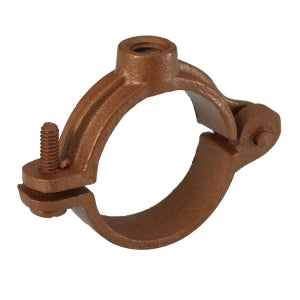

The MACOMB GROUP B3198HCT is a 2 copper tubing hinged extension split clamp. Constructed from malleable iron with a DURA-COPPER finish, this clamp is designed for non-insulated stationary pipe lines in horizontal or vertical positions. It conforms to MSS ANSI/SP-69, SP-58 Type 12, and Federal Specification A-A-1192A Type 12 industry standards.

• Hinged design allows for a quick installation
• Application: For non-insulated stationary pipe lines in either a horizontal or vertical position
• Rod Size: 3/8-16 UNC

Product Highlights

2 IN nominal size copper tubing hinged extension split clamp with a 3/8-16 UNC rod size and DURA-COPPER finish.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: B3198HCT-2

Technical Specifications

• Series/Model: Series B3198HCT
• Nominal Size: 2 IN
• Rod Size: 3/8-16 UNC
• Material: Malleable Iron
• Industry Standards: MSS ANSI/SP-69 And SP-58 Type 12, Federal Specification A-A-1192A Type 12
• Finish/Color: DURA-COPPER™
• Other Physical Dimension: 1-1/2 IN Center To Top
• Item Name: Extension Split Clamp
• Type: Copper Tubing, Hinged
• Maximum Load: 180 LB
