Macomb Group B3083-7/8PLN 7/8 B3083 CS Welded Beam Attachment

Product Description

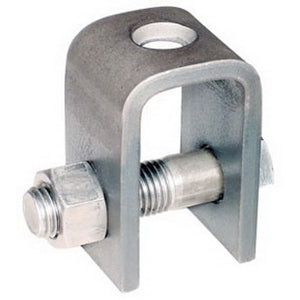

The MACOMB GROUP B3083-7/8PLN welded beam attachment is designed for attaching a hanger rod to the bottom of structural steel. Constructed from low carbon steel, it accommodates a 7/8-9 UNC rod size and a 1 IN bolt size. It has a 2 IN jaw opening and complies with MSS ANSI/MSS-SP-69 And SP-58 Type 22, Federal Specification WW-H-171E And A-A-1192A Type 22.

• Welded Beam Attachment
• Low Carbon Steel Construction
• Complies with MSS ANSI/MSS-SP-69 And SP-58 Type 22

Product Highlights

This welded beam attachment is made of low carbon steel and adheres to industry standards.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: B3083-7/8PLN

Technical Specifications

• Series/Model: Series B3083
• Rod Size: 7/8-9 UNC
• Bolt Size: 1 IN
• Load Capacity: 3508 LB At 750 DEG F
• Jaw Opening: 2 IN
• Material: Low Carbon Steel
• Industry Standards: MSS ANSI/MSS-SP-69 And SP-58 Type 22, Federal Specification WW-H-171E And A-A-1192A Type 22
• Finish/Color: Plain
• Center Of Cross Bolt To Bottom Of Attachment: 3 IN
• Center Of Cross Bolt To Top Of Attachment: 1-1/4 IN
• Hole Diameter: 1-1/8 IN
• Maximum Load: 4480 LB At 650 DEG F
