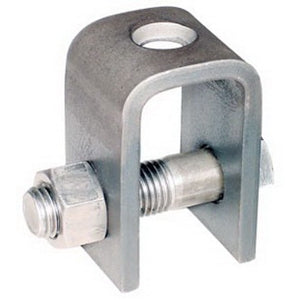

Macomb Group B3083-3/8PLN Welded Beam Attachment

Product Description

The MACOMB GROUP B3083-3/8PLN welded beam attachment is part of the Series B3083. Constructed from low carbon steel, it features a 1-1/4 IN jaw opening and a 1/2 IN bolt size. It supports a 572 LB load at 750 DEG F and complies with MSS ANSI/MSS-SP-69, SP-58 Type 22, Federal Specification WW-H-171E, and A-A-1192A Type 22 industry standards.

• Welded Beam Attachment
• Low Carbon Steel Construction
• Complies with MSS ANSI/MSS-SP-69 And SP-58 Type 22

Product Highlights

The B3083-3/8PLN welded beam attachment is made from low carbon steel and adheres to industry standards.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: B3083-3/8PLN

Technical Specifications

• Series/Model: Series B3083
• Rod Size: 3/8-16 UNC
• Bolt Size: 1/2 IN
• Load Capacity: 572 LB At 750 DEG F
• Jaw Opening: 1-1/4 IN
• Material: Low Carbon Steel
• Industry Standards: MSS ANSI/MSS-SP-69 And SP-58 Type 22, Federal Specification WW-H-171E And A-A-1192A Type 22
• Finish/Color: Plain
• Center Of Cross Bolt To Bottom Of Attachment: 2 IN
• Center Of Cross Bolt To Top Of Attachment: 7/8 IN
• Hole Diameter: 9/16 IN
