Macomb Group B3083-1/2PLN Welded Beam Attachment 1/2-13 UNC

Product Description

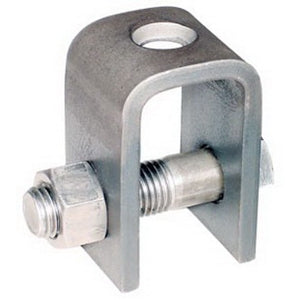

The MACOMB GROUP B3083-1/2PLN is a welded beam attachment designed for attaching a hanger rod to the bottom of structural steel. It features a 1-1/4 IN jaw opening and is made of low carbon steel with a plain finish. It conforms to MSS ANSI/MSS-SP-69 and SP-58 Type 22, Federal Specification WW-H-171E and A-A-1192A Type 22 industry standards.

• Rod Size: 1/2-13 UNC
• Jaw Opening: 1-1/4 IN
• Material: Low Carbon Steel

Product Highlights

Designed for attaching hanger rod to the bottom of structural steel. Conforms to industry standards.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: B3083-1/2PLN

Technical Specifications

• Series/Model: Series B3083
• Rod Size: 1/2-13 UNC
• Jaw Opening: 1-1/4 IN
• Material: Low Carbon Steel
• Industry Standards: MSS ANSI/MSS-SP-69 And SP-58 Type 22, Federal Specification WW-H-171E And A-A-1192A Type 22
• Finish/Color: Plain
• Center Of Cross Bolt To Bottom Of Attachment: 2 IN
• Center Of Cross Bolt To Top Of Attachment: 7/8 IN
• Hole Diameter: 11/16 IN
• Maximum Load: 1350 LB At 650 DEG F
• Load Capacity: 1057 LB At 750 DEG F
• Additional Specifications: Steel Size: 1/4 X 2 IN, PHD 900
