Macomb Group 5X4.BFCRD 5 x 4 Std Ci Flgd Conc Coupling

Product Description

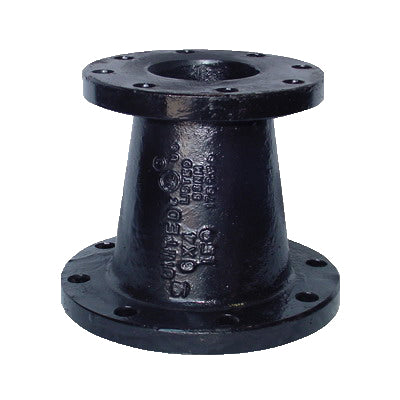

The MACOMB GROUP 5X4.BFCRD is a concentric reducing coupling with a flanged connection type. Constructed from cast iron with a black finish, this coupling conforms to ASTM A126 material standards and ANSI/ASME B16.1 and B1.20.1 industry standards. It is UL and ULC listed and FM approved, suitable for Class 125 pressure applications.

• Concentric Reducing Coupling
• Flanged connection type
• Cast Iron Material
• Black Finish/Color
• UL And ULC Listed
• FM Approved

Product Highlights

Concentric reducing coupling with flanged connection and cast iron construction, UL/ULC listed and FM approved.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 5X4.BFCRD

Technical Specifications

• Pressure Class: Class 125
• Nominal Size: 5 X 4 IN
• Flange Outside Diameter: 10 X 9 IN
• Connection Type: Flanged
• Schedule: STD
• Wall Thickness: 1/2 X 1/2 IN
• Flange Thickness: 0.94 X 0.94 IN
• Material: Cast Iron
• Material Standard: ASTM A126
• Finish/Color: Black
• Industry Standards: ANSI/ASME B16.1, ANSI/ASME B1.20.1
• Listings: UL And ULC Listed, FM Approved
• Other Physical Dimension: 8 IN Center To Face
