Macomb Group 301-104NL Dielectric Union 3/4 in

Product Description

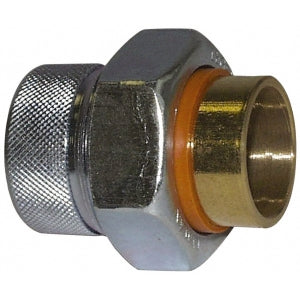

The MACOMB GROUP 301-104NL is a 3/4 IN dielectric union with FNPT X Sweat connection. Constructed from forged steel with a galvanized finish, this union is designed to prevent galvanic corrosion when joining dissimilar metals. It is suitable for residential and commercial applications, with a maximum pressure of 200 PSI and a temperature rating of 180 DEG F.

• Dielectric Union
• Lead Free
• Designed to reduce stray current and galvanic corrosion where two dissimilar metals are joined

Product Highlights

This lead-free dielectric union is ideal for potable water installations, fully compliant with all lead-free plumbing laws.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 301-104NL

Technical Specifications

• Nominal Size: 3/4 IN
• Connection Type: FNPT X Sweat
• Material: Forged Steel
• Finish/Color: Galvanized
• Maximum Pressure: 200 PSI
• Temperature Rating: 180 DEG F
• Industry Standards: ANSI/ASME B16.39, ANSI/ASME B1.20.1, ANSI/ASME B16.18
• Meets NSF 372 Lead Content Requirement: Yes
• WQA Certified: Yes
• U.S Federal Public Law 111-380 Certified: Yes
