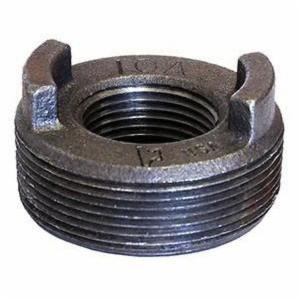

Macomb Group 2X1D.BFB 2 x 1-1/2 Std Blk Mi Flush Bushing

Product Description

The MACOMB GROUP 2X1D.BFB is a Class 150 Standard Black Malleable Iron Flush Bushing, sized at 2 X 1-1/2 IN with MNPT X FNPT connection type. It is made from carefully analyzed and controlled iron, ensuring strict adherence to formula. Tapping is performed using modern threading machines, and each piece is hand-sorted and inspected.

• Produced in both malleable iron and cast iron grades.
• Tapping is done on the most modern type of threading machines
• Hand sorted and inspected to eliminate defective castings

Product Highlights

Standard black malleable iron flush bushing with MNPT X FNPT connection, manufactured to ASME B16.3 standards.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 2X1D.BFB

Technical Specifications

• Connection Type: MNPT X FNPT
• Finish/Color: Black
• Industry Standards: ASME B16.3, ANSI/ASME B1.20.1, UL And ULC Listed, FM Approved, NSF 61 And NSF 61 Annex G
• Item Name: Flush Bushing
• Material: Malleable Iron
• Material Standard: ASTM A197
• Nominal Size: 2 X 1-1/2 IN
• Pressure Class: Class 150
• Schedule: STD
• Other Physical Dimension: 0.7 IN Internal X 0.88 IN External Thread Length
• Domestic/Import: Domestic
