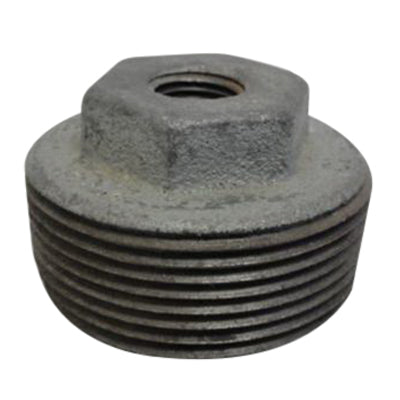

Macomb Group 1DXB.NB Hex Bushing 1-1/2 X 1/4 IN

Product Description

The MACOMB GROUP 1DXB.NB is a hex bushing with a class 125 pressure rating. Constructed from cast iron with a galvanized finish, it adheres to ASTM A126 Class A Minimum material standards and ASTM A153 coating standards. It has a nominal size of 1-1/2 X 1/4 IN and features MNPT X FNPT connection type.

• Hex Bushing
• Galvanized Finish
• Cast Iron Material

Product Highlights

This hex bushing is made from cast iron with a galvanized finish and meets industry standards.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 1DXB.NB

Technical Specifications

• Nominal Size: 1-1/2 X 1/4 IN
• Connection Type: MNPT X FNPT
• Schedule: STD
• Material: Cast Iron
• Material Standard: ASTM A126 Class A Minimum
• Coating: ASTM A153
• Finish/Color: Galvanized
• Industry Standards: ASME B16.14, ASME B16.4, ANSI/ASME B1.20.1, UL And ULC Listed, FM Approved, NSF 61 And NSF 61 Annex G
• Head Width: 1.12 IN
• Head Height: 0.37 IN
• Internal Thread Length: 0.32 IN
• External Thread Length: 0.83 IN
• Pressure Class: Class 125
