Macomb Group 10230345 1 C X Mpt Adapter Cln For Oxy

Product Description

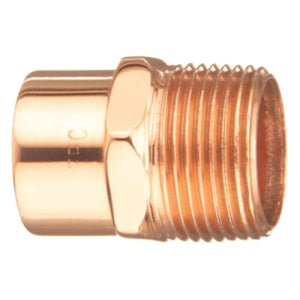

The MACOMB GROUP 10230345 KleenFit™ Industrial/Residential Solder Joint Male Adapter (Model 104) features a copper X MNPT connection. Constructed from copper, it has a maximum pressure of 490 PSI and a temperature rating of -20 to 100 DEG F. It adheres to industry standards MSS-SP-104, ASME/ANSI B16.22, and NSF/ANSI Standard 61 and is O2 cleaned.

• KleenFit™ Industrial/Residential Solder Joint Male Adapter
• Copper X MNPT Connection
• O2 Cleaned

Product Highlights

This copper male adapter is suitable for industrial and residential applications requiring a solder joint and MNPT connection.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10230345

Technical Specifications

• Series/Model: Model 104
• Tube Size: 1 IN
• Nominal Size: 1 IN
• Connection Type: Copper X MNPT
• Material: Copper
• Maximum Pressure: 490 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• O2 Cleaned: Yes
