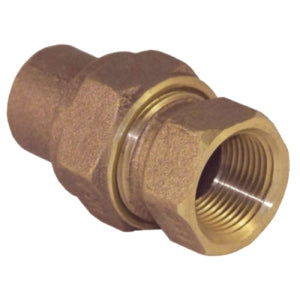

Macomb Group 10056692 Cast C X Fpt Lead Free Union

Product Description

The MACOMB GROUP 10056692 is an industrial/residential solder joint union. Constructed from brass to ASTM B75 and UNS C12200 material standards, this lead-free union features a copper x FNPT connection type. It is ASME/ANSI B16.18 and NSF/ANSI Standard 61 certified, and ROHS 2011/95/EC compliant, with a maximum pressure of 360 PSI and a temperature rating of -20 to 100 DEG F.

• Industrial/Residential Solder Joint Union
• Lead Free
• Copper X FNPT Connection

Product Highlights

This lead-free cast brass solder joint union is ideal for industrial and residential applications, ensuring safe and reliable connections.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10056692

Technical Specifications

• Tube Size: 2 IN
• Nominal Size: 2 IN
• Connection Type: Copper X FNPT
• Material: Brass
• Material Standard: ASTM B75
• Material Specification: UNS C12200
• Maximum Pressure: 360 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• Lead Free: Yes
• Item Name: Solder Joint Union
• Type: Industrial/Residential
