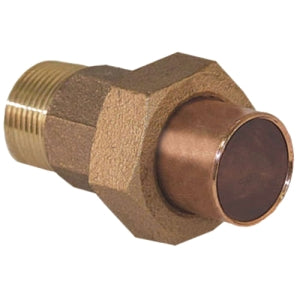

Macomb Group 10037987 1/2 Cast C x MPT Union

Product Description

The MACOMB GROUP 10037987 is an industrial/residential solder joint union. This Model 4733-4 union features a 1/2 IN tube size and a 1/2 IN nominal size. Constructed from brass, it is designed with a Copper X MNPT connection type and can withstand a maximum pressure of 720 PSI. It is suitable for temperatures ranging from -20 to 100 DEG F.

• Industrial/Residential Solder Joint Union
• Tube Size: 1/2 IN
• Maximum Pressure: 720 PSI

Product Highlights

The MACOMB GROUP 10037987 union is made of brass with a Copper X MNPT connection. Suitable for industrial and residential applications.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10037987

Technical Specifications

• Series/Model: Model 4733-4
• Tube Size: 1/2 IN
• Nominal Size: 1/2 IN
• Connection Type: Copper X MNPT
• Material: Brass
• Maximum Pressure: 720 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• Item Name: Solder Joint Union
• Type: Industrial/Residential
