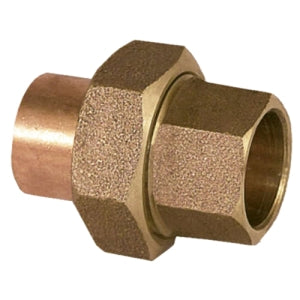

Macomb Group 10037948 3 Cast C x C Union

Product Description

The MACOMB GROUP 10037948 is an industrial/residential solder joint union. This Model 4733 union features a 3 IN tube size and a copper connection. Constructed from brass alloy, it withstands a maximum pressure of 315 PSI and temperatures from -20 to 100 DEG F. Compliant with ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, and ROHS 2011/95/EC standards.

• Industrial/Residential Solder Joint Union
• Copper Connection
• 3 IN Tube Size

Product Highlights

The MACOMB GROUP 10037948 union ensures secure and compliant connections for industrial and residential applications.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10037948

Technical Specifications

• Series/Model: Model 4733
• Tube Size: 3 IN
• Connection Type: Copper
• Material: Brass Alloy
• Maximum Pressure: 315 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• TecTite: No
• DWV: No
• Cast: Yes
• Wrot: No
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Union
• Type: Industrial/Residential
