Macomb Group 10037940 Cast C X C Union 1-1/4 IN

Product Description

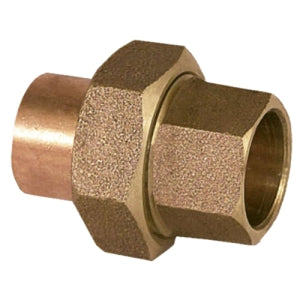

The MACOMB GROUP 10037940 is an industrial/residential solder joint union. This Model 4733 union features a copper connection type and is constructed from brass alloy. It is designed to withstand a maximum pressure of 435 PSI and operates in temperatures ranging from -20 to 100 DEG F.

• Industrial/Residential Solder Joint Union
• Copper Connection Type
• Brass Alloy Material

Product Highlights

The MACOMB GROUP 10037940 union is ASME/ANSI B16.18 and NSF/ANSI Standard 61 certified, and ROHS 2011/95/EC compliant.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10037940

Technical Specifications

• Series/Model: Model 4733
• Tube Size: 1-1/4 IN
• Connection Type: Copper
• Material: Brass Alloy
• Maximum Pressure: 435 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• TecTite: No
• DWV: No
• Cast: Yes
• Wrot: No
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Union
• Type: Industrial/Residential
