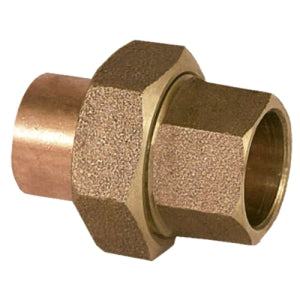

Macomb Group 10037939 Cast C X C Union 1 IN

Product Description

The MACOMB GROUP 10037939 is an industrial/residential solder joint union. This Model 4733 union features a 1 IN tube size and is made of brass alloy. It is designed for copper connection types and has a maximum pressure of 490 PSI. It is suitable for temperature ratings from -20 to 100 DEG F.

• Tube Size: 1 IN
• Maximum Pressure: 490 PSI
• Material: Brass Alloy

Product Highlights

The MACOMB GROUP 10037939 union is ASME/ANSI B16.18 and NSF/ANSI Standard 61 certified and ROHS 2011/95/EC compliant. It is ideal for industrial and residential applications.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10037939

Technical Specifications

• Series/Model: Model 4733
• Tube Size: 1 IN
• Connection Type: Copper
• Material: Brass Alloy
• Maximum Pressure: 490 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• Cast: Yes
• Lead Free: No
• Item Name: Solder Joint Union
• Type: Industrial/Residential
