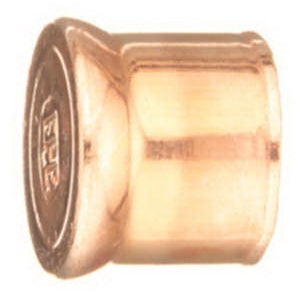

Macomb Group 10032028 Wrot Copper Ftg End Plug 1 IN

Product Description

The MACOMB GROUP 10032028 is an industrial/residential solder joint fitting end plug. Constructed from copper, this fitting is suitable for copper connections with a 1 IN tube size. It withstands a maximum pressure of 490 PSI and temperatures from -20 to 100 DEG F.

• Industrial/Residential Solder Joint Fitting
• End Plug
• Copper Connection

Product Highlights

The MACOMB GROUP 10032028 end plug is a wrot copper fitting for solder joint connections, compliant with MSS-SP-104, ASME/ANSI B16.22, and NSF/ANSI Standard 61.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10032028

Technical Specifications

• Series/Model: Model 116
• Tube Size: 1 IN
• Connection Type: Copper
• Material: Copper
• Outside Diameter: 1-1/8 IN
• Maximum Pressure: 490 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• TecTite: No
• DWV: No
• Cast: No
• Wrot: Yes
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Fitting End Plug
• Type: Industrial/Residential
