Macomb Group 10031296 Wrot C X C 90 Ell

Product Description

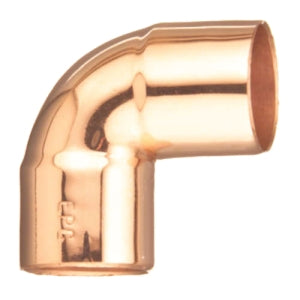

The MACOMB GROUP 10031296 is an industrial/residential solder joint close ruff 90-degree elbow. Constructed from copper, it is designed for a 1-inch tube size with a copper connection type. This wrot elbow has an outside diameter of 1-1/8 inches and is suitable for applications with a maximum pressure of 490 PSI and temperatures ranging from -20 to 100 degrees F.

• Industrial/Residential Solder Joint
• Close Ruff 90 DEG Elbow
• Compliant with MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61

Product Highlights

Copper construction ensures durability. Suitable for industrial and residential applications. Certified to meet industry standards.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10031296

Technical Specifications

• Tube Size: 1 IN
• Connection Type: Copper
• Material: Copper
• Outside Diameter: 1-1/8 IN
• Maximum Pressure: 490 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Lead Free: No
