Macomb Group 10030470 1-1/2 wrot ftg x mpt adapter

Product Description

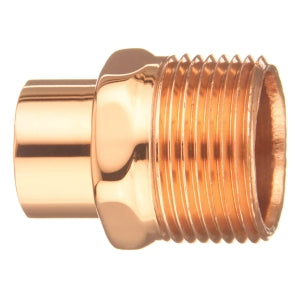

The MACOMB GROUP 10030470 is an industrial/residential solder joint street male adapter. This adapter features a 1-1/2 IN tube size, a 1-1/2 IN nominal size, and a fitting X MNPT connection type. It is constructed from copper and has an outside diameter of 1-5/8 X 1-1/2 IN.

• Tube Size: 1-1/2 IN
• Nominal Size: 1-1/2 IN
• Maximum Pressure: 405 PSI

Product Highlights

The MACOMB GROUP 10030470 adapter is suitable for industrial and residential applications. It is made of copper and certified to MSS-SP-104, ASME/ANSI B16.22, and NSF/ANSI Standard 61.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10030470

Technical Specifications

• Tube Size: 1-1/2 IN
• Nominal Size: 1-1/2 IN
• Connection Type: Fitting X MNPT
• Material: Copper
• Outside Diameter: 1-5/8 X 1-1/2 IN
• Maximum Pressure: 405 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Street Male Adapter
• Type: Industrial/Residential
