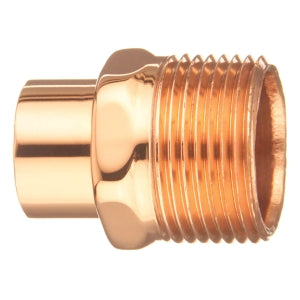

Macomb Group 10030460 1-1/4 Wrot Ftg X Mpt Adapter

Product Description

The MACOMB GROUP 10030460 is an industrial/residential solder joint street male adapter. This Model 104-2 adapter features a fitting X MNPT connection type and is constructed from copper. It is designed for use with a 1-1/4 IN tube size and has a maximum pressure of 435 PSI. It adheres to industry standards MSS-SP-104, ASME/ANSI B16.22, and NSF/ANSI Standard 61.

• Industrial/Residential Solder Joint Street Male Adapter
• Constructed from copper material
• Maximum pressure of 435 PSI

Product Highlights

The MACOMB GROUP 10030460 adapter is ideal for industrial or residential applications requiring a durable and reliable solder joint connection.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10030460

Technical Specifications

• Series/Model: Model 104-2
• Tube Size: 1-1/4 IN
• Nominal Size: 1-1/4 IN
• Connection Type: Fitting X MNPT
• Material: Copper
• Outside Diameter: 1-3/8 X 1-1/4 IN
• Maximum Pressure: 435 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Street Male Adapter
• Type: Industrial/Residential
