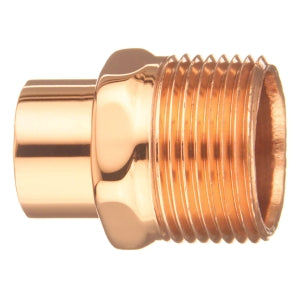

Macomb Group 10030444 3/4 Wrot Ftg X Mpt Adapter

Product Description

The MACOMB GROUP 10030444 is an industrial/residential solder joint street male adapter. This adapter, part of the Model 104-2 series, features a fitting X MNPT connection type and is constructed from copper. It is designed for use in systems with a maximum pressure of 580 PSI and temperatures ranging from -20 to 100 DEG F.

• Tube Size: 3/4 IN
• Nominal Size: 3/4 IN
• Material: Copper

Product Highlights

This adapter is Wrot and certified to industry standards MSS-SP-104, ASME/ANSI B16.22, and NSF/ANSI Standard 61.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10030444

Technical Specifications

• Series/Model: Model 104-2
• Tube Size: 3/4 IN
• Nominal Size: 3/4 IN
• Connection Type: Fitting X MNPT
• Material: Copper
• Maximum Pressure: 580 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Street Male Adapter
• Type: Industrial/Residential
