Macomb Group 10030410 Wrot C X Mpt Adapter 4 IN

Product Description

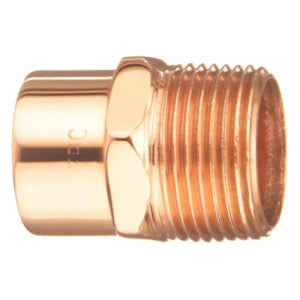

The MACOMB GROUP 10030410 is an industrial/residential solder joint male adapter. Constructed from copper, this adapter features a 4-inch tube size and a copper X MNPT connection type. It is designed to withstand a maximum pressure of 290 PSI and temperatures ranging from -20 to 100 DEG F. Compliant with industry standards MSS-SP-104, ASME/ANSI B16.22, and NSF/ANSI Standard 61.

• Industrial/Residential Solder Joint Male Adapter
• 4 IN Tube Size
• Copper X MNPT Connection Type

Product Highlights

Copper adapter with 4 IN tube size and Copper X MNPT connection. Suitable for industrial and residential applications.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10030410

Technical Specifications

• Series/Model: Model 104
• Tube Size: 4 IN
• Nominal Size: 4 IN
• Connection Type: Copper X MNPT
• Material: Copper
• Outside Diameter: 4-1/8 X 4 IN
• Maximum Pressure: 290 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• TecTite: No
• DWV: No
• Cast: No
• Wrot: Yes
• Lead Free: No
• O2 Cleaned: No
