Macomb Group 10030378 2 Wrot C X Mpt Adapter

Product Description

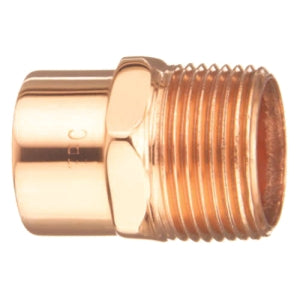

The MACOMB GROUP 10030378 is an industrial/residential solder joint male adapter. This Model 104 adapter features a copper X MNPT connection and is constructed from copper. It is suitable for use in systems with a maximum pressure of 360 PSI and temperatures ranging from -20 to 100 DEG F.

• Industrial/Residential Solder Joint Male Adapter
• Tube Size: 2 IN
• Connection Type: Copper X MNPT

Product Highlights

The MACOMB GROUP 10030378 adapter is made of copper and has a 2 inch tube size. It is certified to MSS-SP-104, ASME/ANSI B16.22, and NSF/ANSI Standard 61.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10030378

Technical Specifications

• Series/Model: Model 104
• Tube Size: 2 IN
• Nominal Size: 2 IN
• Connection Type: Copper X MNPT
• Material: Copper
• Maximum Pressure: 360 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Item Name: Solder Joint Male Adapter
• Type: Industrial/Residential
• Wrot: Yes
