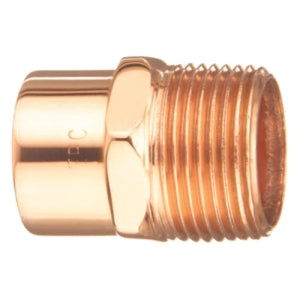

Macomb Group 10030342 Wrot C X Mpt Adapter 1 IN

Product Description

The MACOMB GROUP 10030342 is an industrial/residential solder joint male adapter. This Model 104 adapter features a copper X MNPT connection, a tube size of 1 IN, and a nominal size of 1 IN. It is constructed from copper and has an outside diameter of 1-1/8 X 1 IN.

• Copper X MNPT Connection
• Maximum Pressure: 490 PSI
• Temperature Rating: -20 To 100 DEG F

Product Highlights

This adapter is certified to Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10030342

Technical Specifications

• Series/Model: Model 104
• Tube Size: 1 IN
• Nominal Size: 1 IN
• Connection Type: Copper X MNPT
• Material: Copper
• Outside Diameter: 1-1/8 X 1 IN
• Maximum Pressure: 490 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Item Name: Solder Joint Male Adapter
• Type: Industrial/Residential
