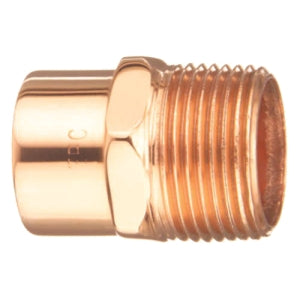

Macomb Group 10030290 1/4 Wrot C X MPT Adapter

Product Description

The MACOMB GROUP 10030290 is an industrial/residential solder joint male adapter. This Model 104 adapter features a 1/4 IN tube size and nominal size, with a Copper X MNPT connection type. Constructed from copper, it has an outside diameter of 3/8 X 1/4 IN and a maximum pressure rating of 910 PSI. It is suitable for temperatures ranging from -20 to 100 DEG F.

• Industrial/Residential Solder Joint Male Adapter
• Tube Size: 1/4 IN
• Maximum Pressure: 910 PSI

Product Highlights

The MACOMB GROUP 10030290 adapter is ideal for industrial and residential applications requiring a durable and reliable solder joint connection.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10030290

Technical Specifications

• Series/Model: Model 104
• Tube Size: 1/4 IN
• Nominal Size: 1/4 IN
• Connection Type: Copper X MNPT
• Material: Copper
• Outside Diameter: 3/8 X 1/4 IN
• Maximum Pressure: 910 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Male Adapter
• Type: Industrial/Residential
