Macomb Group 100208 8 IPS HDPE FM200 Back-Up Ring

Product Description

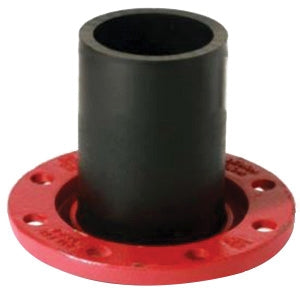

The MACOMB GROUP 100208 is an 8 IPS HDPE FM200 Back-Up Ring. It is designed for HDPE pipe and features a red epoxy-coated ductile iron molded construction. The backup ring conforms to ANSI B16.5 Specified and FM 250 Approved industry standards.

• For HDPE pipe
• Red Epoxy-Coated Ductile Iron Molded
• Material: Ductile Iron

Product Highlights

The MACOMB GROUP 100208 backup ring is made from ductile iron with a red epoxy coating, designed for use with HDPE pipe.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 100208

Technical Specifications

• Item Name: Backup Ring
• Pressure Class: 150
• Nominal Size: 8 IN IPS
• Wall Thickness: SDR 11
• Inside Diameter: 8.88 IN
• Outside Diameter: 8.625 IN
• Thickness: 1.12 IN
• Bolt Circle Diameter: 11.75 IN
• Number Of Bolts: 8
• Bolt Hole Diameter: 0.875 IN
• Material: Ductile Iron
• Material Standard: ASTM A536
• Method Of Manufacturer: Molded
• Maximum Pressure: 335 PSI
• Industry Standards: ANSI B16.5 Specified, FM 250 Approved
• Other Physical Dimension: 7.5 IN Bolt Length
• Domestic/Import: Domestic
