Macomb Group 0310067608 Std Blk Mi 45 Y 2 IN

Product Description

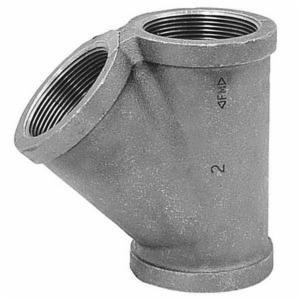

The MACOMB GROUP 0310067608 is a 45 DEG Wye, Model 1108, with a Class 150 pressure rating. Constructed from malleable iron conforming to ASTM A197, it features a black finish and FNPT connection type. It is certified to ASME B16.3, ASME B1.20.1, C/US UL Listed, FM Approved, and NSF/ANSI 61 standards.

• All class 150 malleable iron fittings conform to ASME B16.3
• Nominal Size: 2 IN
• Maximum Pressure: 300 PSI

Product Highlights

The MACOMB GROUP 0310067608 is ideal for plumbing and piping applications requiring a durable and certified wye fitting.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 0310067608

Technical Specifications

• Series/Model: Model 1108
• Pressure Class: Class 150
• Nominal Size: 2 IN
• Connection Type: FNPT
• Schedule: STD
• Material: Malleable Iron
• Material Standard: ASTM A197
• Finish/Color: Black
• Maximum Pressure: 300 PSI
• Temperature Rating: -20 To 150 DEG F
• Industry Standards: ASME B16.3, ASME B1.20.1, C/US UL Listed, FM Approved, NSF/ANSI 61 Certified
• Other Physical Dimension: 1-1/4 IN Center To End Inlet, 3-15/16 IN Center To End Outlet, 5-3/16 IN End To End
• Item Name: 45 DEG Wye
