Macomb Group 0300501400 1-1/2 250 CI THRD 90 ELL

Product Description

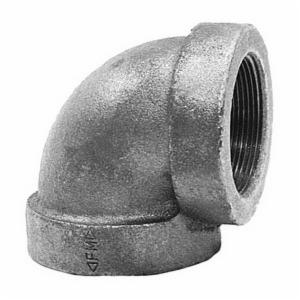

The MACOMB GROUP 0300501400 is a 90 DEG Elbow, Model 421, designed for Class 250 pressure applications. Constructed from cast iron with a black finish, it features a 1-1/2 IN nominal size and FNPT connection type. Suitable for XH schedule systems, it meets ASME B16.4 and ASME B1.20.1 standards.

• 90 DEG Elbow
• FNPT Connection Type
• Cast Iron Material
• XH Schedule

Product Highlights

This elbow is made from cast iron, offering durability and reliability in demanding applications. It is suitable for use in systems requiring compliance with industry standards.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 0300501400
• Country of Origin: Domestic

Technical Specifications

• Series/Model: Model 421
• Pressure Class: Class 250
• Nominal Size: 1-1/2 IN
• Connection Type: FNPT
• Schedule: XH
• Material: Cast Iron
• Material Standard: ASTM A126 Class A Minimum
• Finish/Color: Black
• Maximum Pressure: 400 PSI
• Temperature Rating: -20 To 150 DEG F
• Industry Standards: ASME B16.4, ASME B1.20.1
• Other Physical Dimension: 2-1/8 IN Center To End
• Domestic/Import: Domestic
