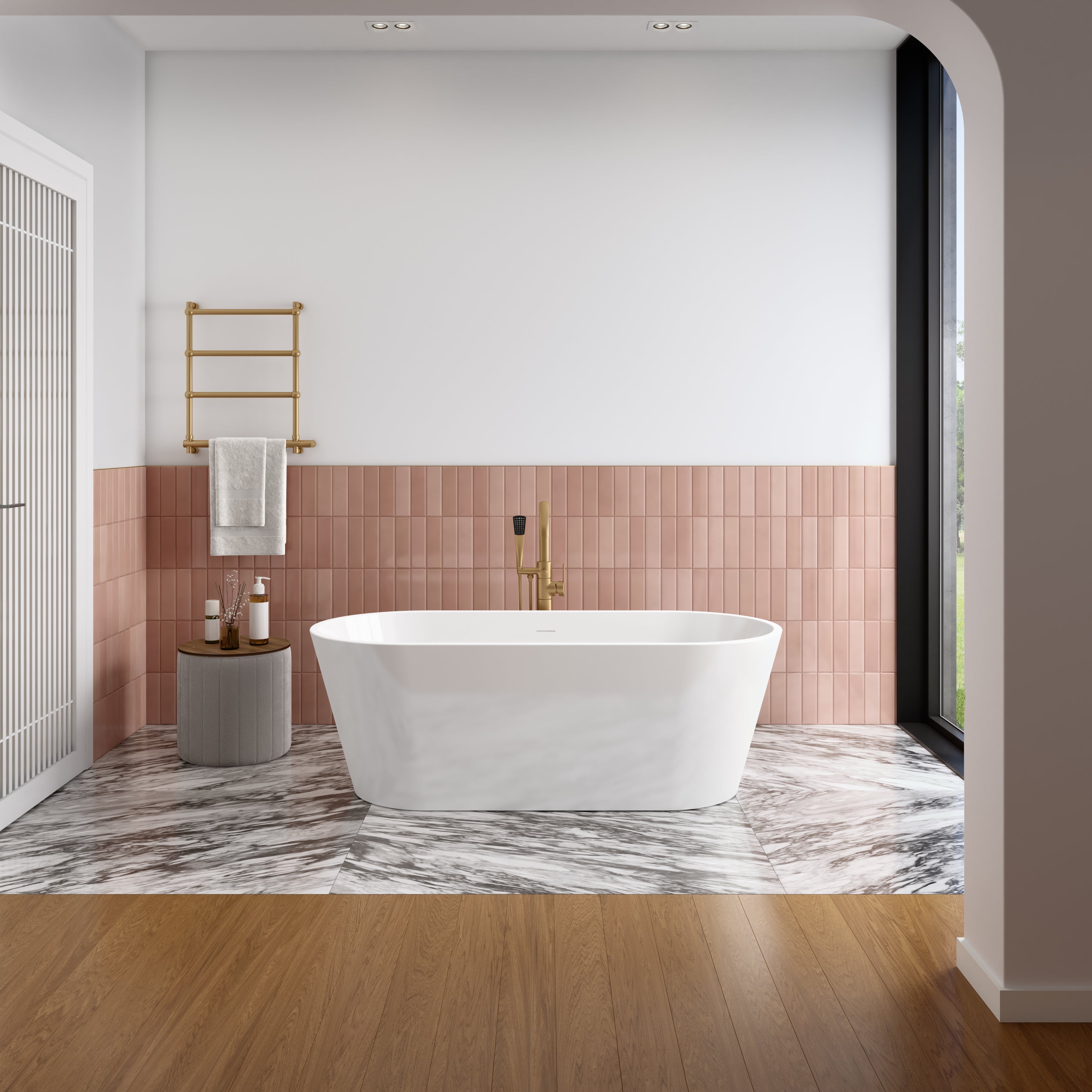

Maax 107674-000-001-000 Freestanding Bathtub 67x31 Acrylic

Product Description

The MAAX 107674-000-001-000 is an acrylic freestanding bathtub designed for residential bathroom installations. It features a center drain configuration and ships with a matching white skirt, giving it a clean, finished appearance without requiring additional skirting materials. The tub measures 66.75 inches long, 30.625 inches wide, and 22.875 inches tall overall. With an 86-gallon maximum water capacity and a bathing well depth of 16.875 inches, it accommodates a full soak. Plumbers and finish carpenters typically handle installation, coordinating drain rough-in and freestanding supply connections.

This bathtub is suited for new construction and remodel projects in residential settings. The center drain placement simplifies rough-in planning when drain location is flexible. The included white skirt integrates with the white acrylic shell for a unified look. The bathing well measures 55.125 inches in length and 23 inches in width, providing usable soaking space appropriate for a standard master bath or primary bathroom application.

Key Features

• Acrylic construction with white finish on both shell and skirt
• Center drain configuration for flexible rough-in placement
• 86-gallon maximum water capacity
• Bathing well dimensions: 55.125 inches long, 23 inches wide, 16.875 inches deep
• White skirt included — no separate skirting required
• Freestanding design suitable for open floor plan bath layouts

Compatibility

Designed as a freestanding drop-in-style acrylic bathtub for residential bathroom installations where a center drain location is specified in the rough-in plan.

Installation Notes

Installation is typically performed by a licensed plumber. Shut off water supply before making any drain or supply connections. Verify that the subfloor is level and rated for the combined load of the tub, water capacity, and occupant. Follow local plumbing code requirements for drain trap depth, venting, and overflow connection.

Technical Specifications

• Maximum Water Capacity: 86 gallons
• Overall Length: 66.75 inches
• Overall Width: 30.625 inches
• Overall Height: 22.875 inches
• Bathing Well Length: 55.125 inches
• Bathing Well Width: 23 inches
• Bathing Well Depth: 16.875 inches
• Drain Configuration: Center drain
• Material: Acrylic
• Color: White with White Skirt

Standard Information

• Brand: MAAX
• Manufacturer Part Number: 107674-000-001-000
