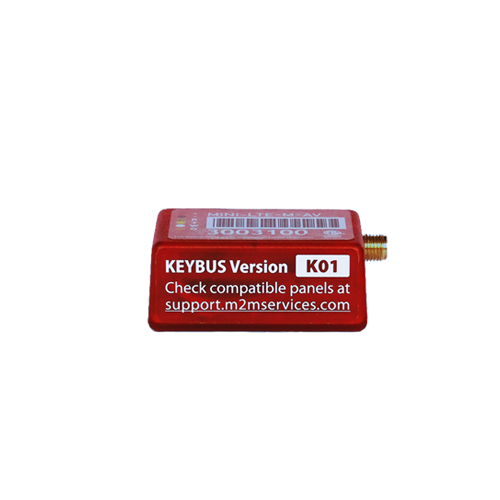

M2M Services MINI-LTE-M-AV MiNi-LTE-M-AV

Product Description

The M2M SERVICES MINI-LTE-M-AV is a universal, 5G-ready, Dual SIM cellular communicator with AT&T and Verizon in one radio. It features CAT-M1 LTE 700/850/1700/1900/2100 MHz cellular communication, an ARM11 processor with 2MB RAM and 7MB Flash, and a dial capture interface supporting Ademco ContactID, SIA and Pulse 4+2.

• Revolutionary HaaS business model
• Free device, lifetime warranty and free upgrade in case of all future sunsets
• Future-proof LTE-M technology

Product Highlights

This compact communicator supports remote upload/download for select panels and keybus integration, operating on +10 to +17 VDC with low power consumption.

Product Information

Standard Information

• Brand: M2M SERVICES
• Manufacturer Part Number: MINI-LTE-M-AV

Technical Specifications

• UL Standards: 985, 1023, 1610
• AT&T: CID, SIA, Pulse 4+2
• Verizon: 1/1
• CAT-M1 LTE: 700/850/1700/1900/2100 MHz cellular communicator for AT&T/Verizon
• Dual SIM: for AT&T and Verizon
• Processor: ARM11 processor, 2MB RAM, 7MB Flash
• Dial Capture interface: supporting Ademco ContactID, SIA and Pulse 4+2
• Digital I/O: 1 digital input, 1 digital output
• Remote Upload/Download: for selected Honeywell, DSC, Interlogix panels (requires an add-on module)
• Keybus integration: with selected Honeywell and DSC panels
• Supply Voltage: +10 to +17 VDC
• Power Consumption: Nominal 15 mA, Peak 200 mA
• Dimensions: 1.2" x 1.8" x 0.6" (30 x 45 x 15 mm)
• Weight: 1.1 oz (30 g) without an antenna
• Digital Input: 1 digital input, 1 digital output (programmable)
