M&G Duravent 8DT-CS24-2 DuraTech 24 feet' Square Ceiling Support Box

Product Description

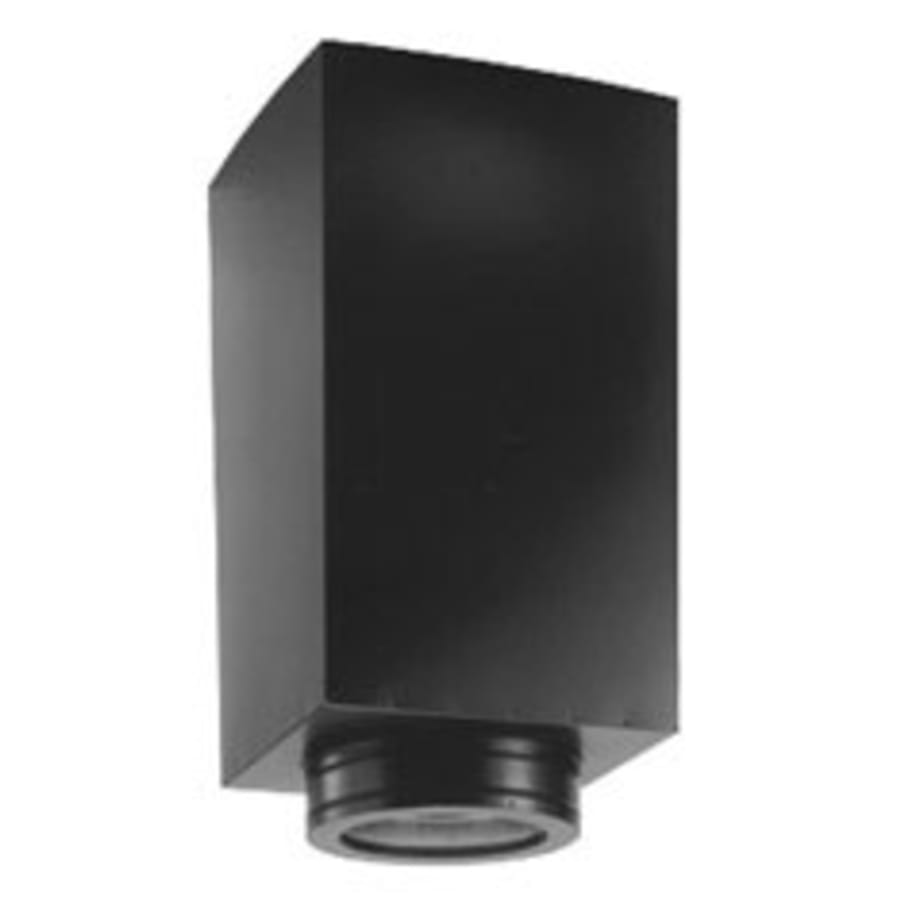

The M&G DURAVENT 8DT-CS24-2 DuraTech Square Ceiling Support Box supports chimney pipe and provides a positive connection between the support box and chimney with a built-in twist-lock. Suitable for flat and cathedral ceiling applications, it fits between standard 16" on-center joists and most manufactured home applications. It supports up to 60' of DuraTech Chimney and includes a 2" wide trim collar.

• Supports chimney pipe
• Provides a positive connection between support box and chimney with a built-in twist-lock
• Suitable for both flat and cathedral (A-Frame) ceiling applications

Product Highlights

This ceiling support box is designed for use with wood stoves, fireplaces, furnaces, boilers, and water heaters and can be used in short attic spaces.

Product Information

Standard Information

• Brand: M&G DURAVENT
• Manufacturer Part Number: 8DT-CS24-2

Technical Specifications

• Inner Diameter: 8-1/4"
• Height: 24"
• Outer Diameter: 11"
• Configuration: Support Box
• Material: Steel
• Pipe Class: Class A
• Pipe Shape: Round
• Vent Construction: Double Wall
• Fuel Type: Coal, Gas, Oil, Wood
• Approved for Commercial Use: No
• Certifications: UL
• Collection: DuraTech
• Pipe Inside Diameter: 8 in
