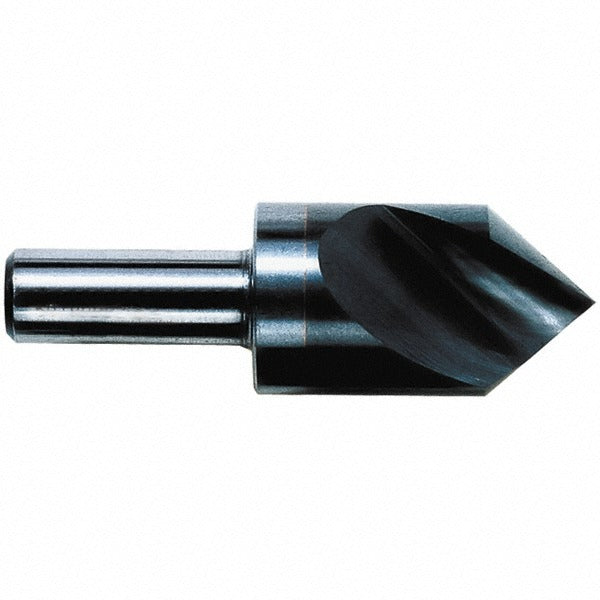

M.a. Ford 60050003A Countersink 1/2 in 90 Degree Solid Carbide

Product Description

The M.A. FORD 60050003A is a single-flute solid carbide countersink designed for chamfering, countersinking, and deburring operations in metal and non-metal workpieces. The tool features a 90-degree included angle and a 1/2-inch head diameter, making it well-suited for producing clean, consistent countersunk seat profiles in a wide range of materials. The straight cylindrical shank measures 1/4 inch in diameter and is constructed from high speed steel, providing rigid tool holding in standard collet chucks and drill press spindles. Overall length is 2-3/8 inches. The cutting range spans 1/16 inch minimum to 29/64 inch maximum cutting diameter.

This countersink is suited for right-hand cutting operations across a broad spectrum of materials in machine shops, production environments, and field fabrication work. Applicable materials include alloy steel, mild steel, stainless steel, high-tensile steel, high-nickel steel, Monel, cast iron, aluminum, brass, magnesium, magnesium alloy, and plastic. It is appropriate for use in CNC machining centers, manual mills, drill presses, and hand-held drilling applications where a 90-degree chamfer or countersunk fastener seat is required.

Key Features

• 90-degree included angle for standard countersunk fastener seat geometry
• Single-flute design reduces cutting forces and chatter on difficult materials
• Solid carbide construction for extended tool life in abrasive and hard materials
• Cutting range of 1/16 inch to 29/64 inch accommodates a wide variety of fastener sizes
• Straight cylindrical 1/4-inch shank fits standard collet chucks and drill chuck toolholding
• Right-hand cutting direction compatible with standard spindle rotation

Compatibility

Designed for use in chamfering, countersinking, and deburring applications across alloy steel, stainless steel, aluminum, brass, cast iron, high-nickel steel, high-tensile steel, Monel, magnesium, magnesium alloy, mild steel, and plastic workpieces.

Installation Notes

Installation and use should be performed by machinists or qualified fabricators following standard machine tool safety practices. Secure the straight cylindrical shank firmly in a collet chuck or drill chuck before operation, and verify spindle speed is appropriate for the workpiece material and tool diameter. Always power down and de-energize the machine before changing or adjusting tooling. Eye protection and appropriate chip management procedures should be observed at all times when operating rotary cutting tools.
