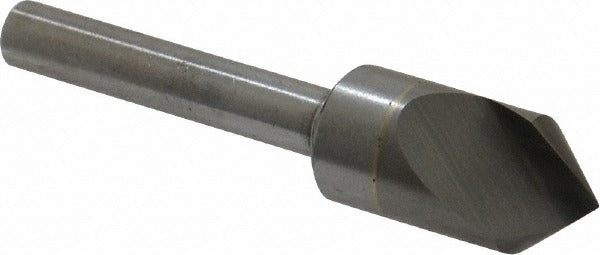

M.a. Ford. 60050002 Countersink 82 Degree 1 Flute Carbide

Product Description

The M.A. FORD. 60050002 is a single-flute solid carbide countersink designed for precision chamfering and countersinking operations in metalworking and fabrication environments. It features an 82-degree included angle, a 1/2-inch head diameter, and a 1/4-inch straight cylindrical shank. The bright/uncoated finish is suitable for a wide range of base materials. At 2-3/8 inches overall length and 0.086 pounds, this countersink is compact and well-balanced for hand-held or machine-spindle use. Machinists, tool-and-die workers, and maintenance technicians are the primary installers of this tool.

This countersink is used in both production and maintenance machining applications where a clean, accurate 82-degree seat is required. The 82-degree angle corresponds to flat-head fastener standards common in aerospace and precision sheet metal work. It is suited for use in manual drill presses, CNC machining centers, and hand-held power tools with appropriate collet or chuck setups. The 1/4-inch shank accepts standard toolholders and collets found in most machine shops and field service kits.

Key Features

• 82-degree included angle matches flat-head screw seat geometry for aerospace and precision metalwork
• Single-flute design reduces chatter and improves surface finish in softer and gummy materials
• Solid carbide construction provides rigidity and wear resistance across a broad material range
• Bright/uncoated finish allows visual wear monitoring during service life
• 1/4-inch straight cylindrical shank fits standard collets and drill chucks
• Tip nose diameter of 0.060 inches enables accurate seating without pilot

Compatibility

Compatible material applications include alloy steel, aluminum, brass, cast iron, high-nickel steel, high-tensile steel, magnesium, magnesium alloy, mild steel, Monel, plastic, and stainless steel. No pilot is included; designed as a pilotless single-end countersink.

Installation Notes

Installation and use should be performed by qualified machinists or tooling technicians familiar with rotating cutting tools. Secure the shank fully in the collet or chuck before operation and verify that spindle speed is set per the material being cut — excessive speed can cause premature wear or breakage in carbide tooling. Always de-energize and lock out the machine spindle before changing tooling. Do not use this tool as a drill or reamer; it is rated for countersinking operations only.
