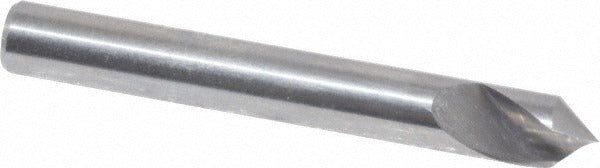

M.a. Ford 60018702 Countersink 82 Deg 1 Flute Carbide

Product Description

The M.A. FORD 60018702 is a single-flute solid carbide countersink designed for precise, clean-entry countersinking across a broad range of materials. Built with an 82-degree included angle, it conforms to standard flat-head fastener geometry used throughout machining and fabrication work. The 3/16-inch straight-cylindrical shank fits standard drill chucks and collet holders. At 1.5 inches overall length and a tip diameter of 0.045 inches, this tool is suited for tight-clearance work and small-diameter countersink applications. Machinists, tool-and-die technicians, and metal fabricators rely on this geometry for consistent seat prep without the chatter common to multi-flute designs in interrupted cuts.

This countersink is used in precision machining, sheet metal fabrication, and general metalworking environments. It handles countersinking operations on alloy steel, mild steel, stainless steel, cast iron, high-tensile steel, high-nickel steel, aluminum, brass, magnesium, magnesium alloy, Monel, and plastic. It is well suited to production environments where a single-flute design minimizes chatter and delivers a smooth, consistent countersink seat. The bright uncoated finish makes it appropriate for applications where coating buildup or material adhesion to the tool surface is a concern.

Key Features

• 82-degree included angle matches standard flat-head fastener seating geometry
• Single-flute design reduces chatter on interrupted cuts and in softer non-ferrous materials
• Solid carbide construction provides rigidity and wear resistance across hard and abrasive workpieces
• Bright uncoated finish suitable for a wide range of metals and plastics without coating-related adhesion concerns
• 3/16-inch straight-cylindrical shank fits standard drill chucks and collet tool holders
• 0.045-inch tip diameter supports small-diameter countersink entry with precise seating control

Compatibility

Designed for use in standard drill chucks and collet holders accepting a 3/16-inch straight-cylindrical shank. Compatible materials include alloy steel, mild steel, stainless steel, cast iron, high-tensile steel, high-nickel steel, aluminum, brass, magnesium, magnesium alloy, Monel, and plastic.

Installation Notes

This tool is installed and operated by machinists and metal fabricators using standard drill press, CNC, or hand-held rotary equipment. Secure the shank fully in the collet or chuck before operation and confirm the workpiece is properly fixtured. Right-hand cutting direction requires forward spindle rotation. Inspect the cutting edge before each use and do not exceed recommended feed and speed parameters for the workpiece material.
