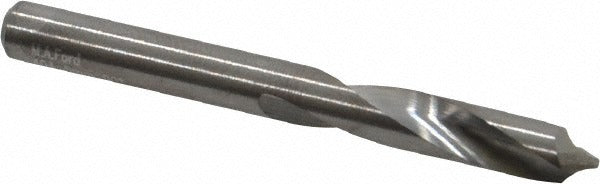

M.a. Ford 40419680 Solid Carbide Spotting Drill 5mm

Product Description

The M.A. FORD 40419680 is a solid carbide spotting drill engineered for precise hole location in general-purpose machining applications. Built to a 90-degree drill point angle, it creates accurate center points that guide subsequent drilling operations and minimize walking or drift. The cutting diameter is 5mm (0.1969 inches), with an overall length of 51mm (2.0079 inches) and a 26mm (1.0236 inches) flute length. The bright, uncoated finish suits a wide range of workpiece materials where coating is not required. This tool is intended for use by machinists and tooling professionals operating CNC or manual drilling equipment.

This spotting drill is suited for general-purpose production and job-shop environments where repeatable hole positioning is critical. The 5mm straight-cylindrical shank (0.1969 inches) fits standard collets and drill chucks. The 21-degree helix angle and two spiral flutes support efficient chip evacuation during spotting cycles. It is a single-ended tool, designed for use in standard spindle setups on vertical machining centers, drill presses, and CNC lathes with live tooling.

Key Features

• 90-degree drill point angle for accurate hole location and centering
• Solid carbide construction for rigidity and wear resistance in general-purpose machining
• Bright, uncoated finish suitable for a broad range of materials
• Two spiral flutes with 21-degree helix angle for effective chip clearance
• Straight-cylindrical shank for compatibility with standard collets and chucks
• Single-ended design for use in conventional spindle tooling setups

Compatibility

Designed as a general-purpose spotting drill for use in standard collet and drill chuck setups accepting a 5mm straight-cylindrical shank.

Installation Notes

Installation and use should be performed by qualified machinists familiar with tooling setup and cutting parameters. Ensure the machine spindle is fully stopped and the tool is securely clamped in the collet or chuck before beginning any operation. Verify runout after installation to maintain spotting accuracy. Follow machine manufacturer guidelines and applicable shop safety protocols when selecting speeds and feeds for the workpiece material.
