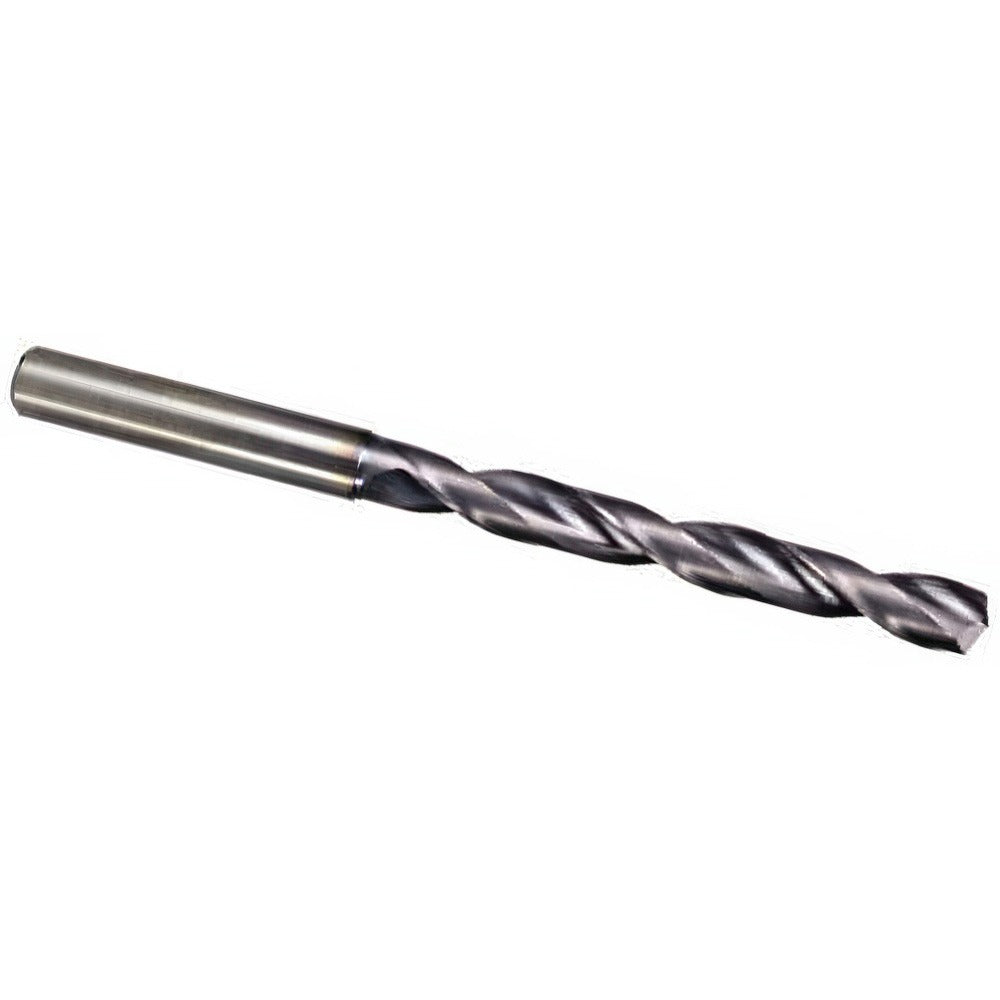

M.a. Ford 2XDCL1406A Taper Length Drill Bit 9/64in Carbide

Product Description

The M.A. FORD 2XDCL1406A is a taper length drill bit engineered for demanding metalworking and machining applications. Built from solid carbide with a coated finish, this bit delivers the rigidity and wear resistance required when drilling through hard and abrasive materials. It measures 0.1406 inches (9/64 inches) in diameter with an overall length of 3.625 inches and a 1.75-inch spiral flute. The 142-degree split point reduces thrust and improves entry accuracy. Coolant-through design supports high-speed drilling operations where heat management is critical. Straight shank at 0.1562 inches diameter fits standard drill chucks without adapters. Licensed machinists, tool-and-die technicians, and CNC operators are the primary installers of this type of tooling.

This bit is suited for production and precision drilling in cast iron, carbon steel, alloy steel, tool steel, and titanium. The 7xD flute-length-to-diameter ratio and right-hand spiral flute geometry make it well matched to CNC machining centers, drill presses, and manual mills where taper length reach is needed beyond standard jobber length. Maximum drilling depth is 1.00 inch. Applications include cross-hole drilling, through-hole production runs, and fixture-plate work where consistent hole tolerance is required. Diameter tolerance is held to +0.00000 to -0.00047 inches, supporting close-fit fastener and dowel holes.

Key Features

• Solid carbide construction for hardness and thermal resistance in ferrous and exotic materials
• 142-degree drill point angle reduces entry thrust and walking on hard substrates
• Coolant-through design channels coolant directly to the cutting edge for heat control at speed
• Right-hand spiral flute with regular spiral type for efficient chip evacuation
• Tight diameter tolerance of +0.00000 to -0.00047 inches for close-fit hole requirements
• Straight shank at 0.1562 inches fits standard ER collets and three-jaw chucks

Compatibility

Rated for use in cast iron, titanium, carbon steel, alloy steel, and tool steel. Straight shank and standard taper length geometry are compatible with ER collet chucks, keyless drill chucks, and CNC toolholders accepting a 5/32-inch shank.

Installation Notes

This bit is installed by machinists and CNC operators into appropriate collets or chucks rated for the shank diameter. Ensure the machine spindle is fully stopped and locked out before changing tooling. Confirm coolant-through supply lines are connected and flow is verified before starting a cycle. Do not use this bit in handheld portable drills; it is intended for rigid machine tool setups only.
