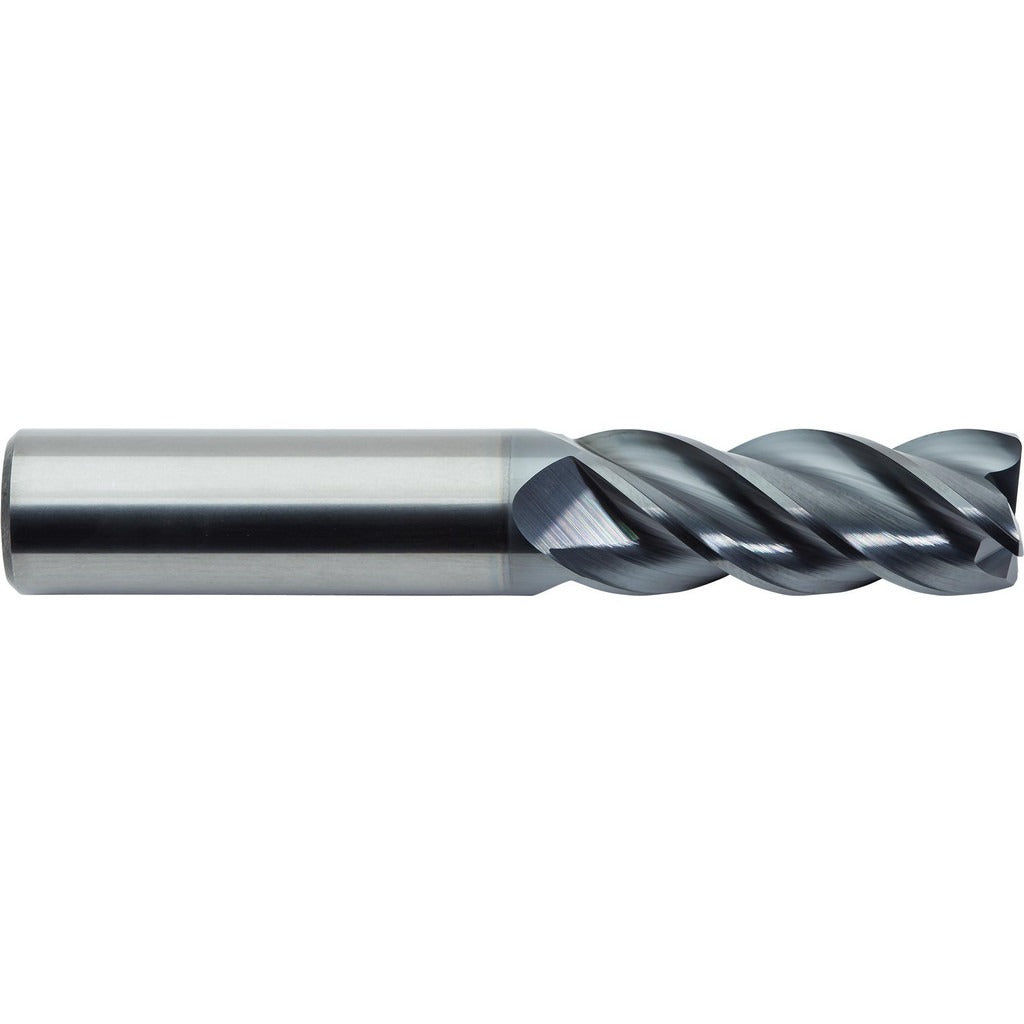

M.a. Ford 27737524B Corner Radius End Mill Head 4 Flute

Product Description

The M.A. FORD 27737524B is a solid carbide corner radius end mill head designed for precision milling in demanding machining applications. With 4 helical flutes and a right-hand cutting direction, this end mill head delivers clean material removal and accurate corner geometry. The variable helix angle, ranging from 38 to 41 degrees, reduces harmonic vibration during cutting, which improves surface finish and extends tool life. This is a replacement-style head intended for compatible modular end mill systems used by machinists and CNC operators in production and job shop environments.

This end mill head is suited for milling operations that require corner radius geometry on ferrous and non-ferrous materials. The solid carbide construction handles the rigors of high-speed machining and provides dimensional stability under thermal load. It is appropriate for use in vertical machining centers and CNC milling machines where a modular tooling system accepts replaceable end mill heads. The right-hand flute direction and right-hand cutting orientation are standard for conventional and climb milling setups.

Key Features

• Solid carbide construction for rigidity and wear resistance
• 4 helical flutes for efficient chip evacuation
• Variable helix angle between 38 and 41 degrees reduces chatter and vibration
• Variable index spacing improves surface finish consistency
• Corner radius end type protects against edge chipping in interrupted cuts
• Right-hand cut and right-hand flute direction for standard milling setups

Compatibility

Designed as a replacement end mill head for modular milling systems that accept compatible M.A. FORD-style interchangeable heads. Verify interface dimensions and thread specifications against your existing toolholder before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the spindle is fully stopped and the machine is locked out before changing tooling. Use the appropriate torque wrench and interface-specific assembly tool when seating the head to avoid cross-threading or under-torquing the modular connection. Inspect the mating surfaces of the toolholder and head for chips or debris before assembly.
