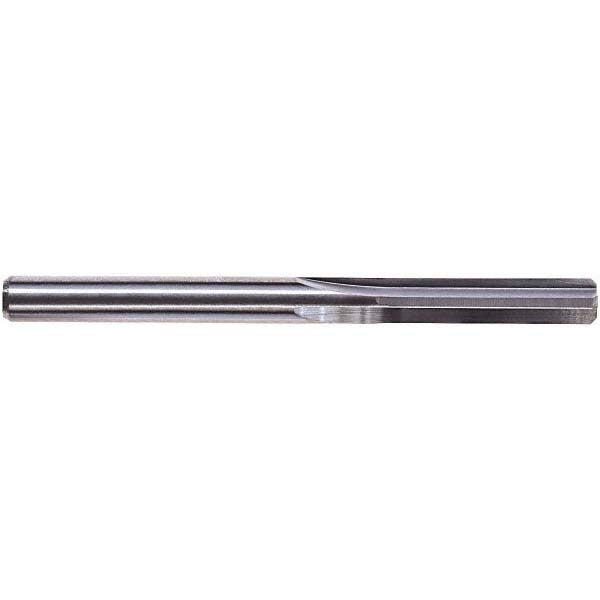

M.a. Ford. 27224410 Chucking Reamer 6.2 Mm Solid Carbide

Product Description

The M.A. FORD. 27224410 is a solid carbide chucking reamer designed for precision hole finishing in metalworking and machining applications. With a 6.2 mm (0.2441 inch) reamer diameter and a diameter tolerance of +0.006 to +0.012 mm, this tool delivers tight, accurate bores suitable for close-tolerance work. It features 4 straight flutes, a right-hand cutting direction, and a straight cylindrical shank for secure chuck mounting. The 76 mm overall length and 25.5 mm flute length make it well-suited for moderate-depth reaming operations on the mill or drill press.

This chucking reamer is intended for use in machine tool setups where repeatable hole accuracy is required. It is commonly used in production and job-shop environments for finishing pre-drilled or bored holes in steel, cast iron, aluminum, and similar machinable materials. The uncoated solid carbide construction provides rigidity and wear resistance suitable for short-run and production reaming. Machinists and toolroom technicians install this reamer in standard drill chucks or collet systems on CNC machining centers, knee mills, and drill presses.

Key Features

• Solid carbide construction for rigidity and wear resistance in precision reaming
• 6.2 mm reamer diameter with +0.006 to +0.012 mm tolerance for close-tolerance bore finishing
• 4 straight flutes with right-hand cut for smooth material removal
• Straight cylindrical shank compatible with standard drill chucks and collet holders
• Uncoated finish suitable for a wide range of machinable metals
• 76 mm overall length with 25.5 mm flute length for moderate-depth applications

Compatibility

Designed as an OEM-style solid carbide chucking reamer for use in standard drill chucks and collet systems on CNC machining centers, knee mills, and drill presses accepting a straight cylindrical shank.

Installation Notes

This reamer is installed by machinists and toolroom technicians in a drill chuck or collet holder. Always ensure the machine spindle is fully stopped and locked out before mounting or removing the tool. Secure the straight shank firmly to the specified runout tolerance of the chuck or collet to maintain bore accuracy. Do not use this reamer as a drill to remove stock material — always pre-drill or bore the hole to near-final size before reaming.
