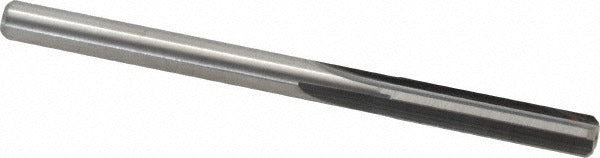

M.a. Ford 27221300 Chucking Reamer 0.2130 in Carbide

Product Description

The M.A. FORD 27221300 is a solid carbide chucking reamer designed for precision hole finishing in machining operations. With a reamer diameter of 0.2130 inches (Wire Size 3) and a diameter tolerance of +0.0001 to +0.0003 inches, this tool delivers tight, accurate bores suitable for close-tolerance applications. The straight flute geometry provides clean cutting action on through-holes in a variety of materials. It features a straight shank for direct chuck mounting and is intended for use by machinists and tooling professionals in shop and production environments.

This reamer is suited for light finishing passes on drilled or bored holes in metalworking and precision machining applications. The 0.2130-inch diameter falls within the 0.2000 to 0.2499 inch range, making it appropriate for finishing wire-gauge-sized holes. With a 1-inch flute length and a 3-inch overall length, it fits standard drill press chucks, milling machine spindles, and CNC toolholders. It is commonly used in job shop, tool room, and production machining settings where consistent hole quality is required.

Key Features

• Solid carbide construction for rigidity and wear resistance in precision reaming
• 0.2130-inch diameter (Wire Size 3) with tight tolerance of +0.0001 to +0.0003 inches
• Straight flute design for clean, controlled cutting on through-holes
• Right-hand cut and right-hand spiral direction for standard machine operation
• Straight shank for compatibility with standard chucks and collets
• Uncoated finish suitable for use across a range of workpiece materials

Compatibility

Designed as an OEM-style solid carbide chucking reamer for use in standard drill press chucks, milling machine spindles, and CNC toolholding systems that accept straight-shank tooling.

Installation Notes

Installation and use should be performed by qualified machinists familiar with reaming procedures and toolroom safety practices. Ensure the machine spindle is fully stopped and locked out before mounting or removing the tool. Secure the straight shank firmly in the chuck or collet to prevent slippage during the cut. Follow shop-standard feeds and speeds for solid carbide reamers appropriate to the workpiece material.
