M.a. Ford 27209500A Chucking Reamer 0.095in Solid Carbide

Product Description

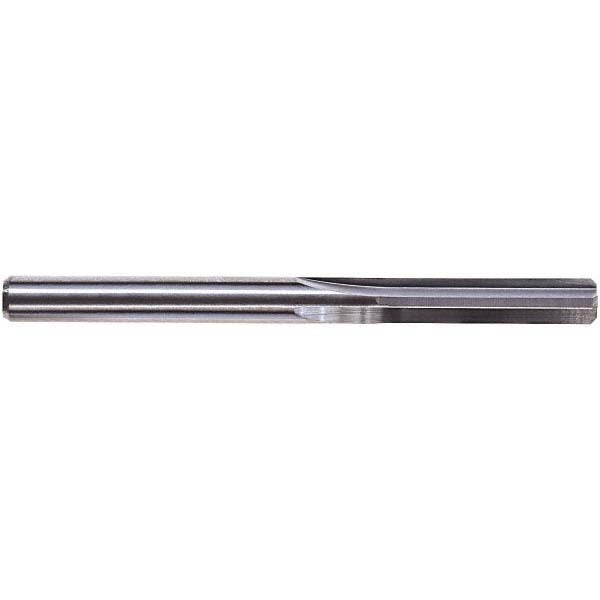

The M.A. FORD 27209500A is a solid carbide chucking reamer designed for precision hole finishing in tight diameter tolerances. Built to a 0.095-inch diameter with a 2-inch overall length and a 1/2-inch flute length, this reamer holds a diameter tolerance of +0.0001 to +0.0003 inches, making it suitable for close-tolerance bore work in production and maintenance environments. The ALtima coating improves wear resistance and extends tool life in ferrous and non-ferrous materials. It carries four straight flutes with a right-hand cut and right-hand spiral, mounted on a straight cylindrical shank for use in drill presses, machining centers, and CNC lathes. Machinists, toolmakers, and precision fabricators are the primary users.

This reamer is sized within the 0.0500 to 0.0999-inch diameter range and belongs to the M.A. FORD Series 272. It is suited for finishing pre-drilled or bored holes where dimensional accuracy and surface finish are critical. Typical applications include dowel pin hole preparation, fixture building, and close-tolerance bore finishing in both shop and field machining contexts. This is a modified standard item and is designated non-returnable and non-cancelable.

Key Features

• Solid carbide construction for rigidity and wear resistance in precision applications
• ALtima coating for extended tool life and reduced friction
• Diameter tolerance of +0.0001 to +0.0003 inches for close-tolerance hole finishing
• Four straight flutes with right-hand cut and right-hand spiral direction
• Straight cylindrical shank for compatibility with standard chucks and collets
• Compact 2-inch OAL with 1/2-inch flute length suited for shallow-reach applications

Compatibility

Designed as an OEM-style precision chucking reamer for use in drill presses, CNC machining centers, and lathes equipped with standard straight-shank toolholders or collets accepting a 0.095-inch diameter tool.

Installation Notes

Installation and use should be performed by qualified machinists or toolmakers familiar with precision reaming operations. Ensure the workpiece is securely fixtured and the spindle is properly aligned before use to avoid bell-mouthing or oversizing the bore. Use appropriate cutting fluid for the workpiece material to maintain surface finish and tool life. This item is a modified standard product and is non-returnable and non-cancelable once ordered.
