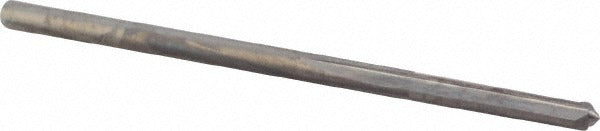

M.a. Ford. 27209500 Chucking Reamer 0.095 in Solid Carbide

Product Description

The M.A. FORD. 27209500 is a solid carbide chucking reamer designed for precision hole finishing in machine shop and production environments. With a reamer diameter of 0.095 inches and a close tolerance of +0.0001/+0.0003 inches, this tool delivers consistent, accurate bore sizing in hard and abrasive materials. The straight flute geometry and right-hand cutting direction make it well suited for through-hole and blind-hole finishing operations on CNC mills, drill presses, and manual lathes. Machinists and tool-and-die professionals install this reamer using a standard chuck or collet setup. The overall length of 2 inches and a flute length of 0.5 inches keep the tool rigid in small-diameter applications.

This reamer is used in precision machining applications where final bore diameter must meet tight tolerances. It performs in ferrous and non-ferrous materials including steel alloys, aluminum, and brass. The solid carbide construction makes it particularly effective in harder workpiece materials and high-cycle production runs where tool life and repeatability are priorities. It belongs to the M.A. FORD. Series 272 and is packaged as a single unit.

Key Features

• Solid carbide construction for extended tool life in hard and abrasive materials
• Reamer diameter tolerance of +0.0001/+0.0003 inches for tight, repeatable bore sizing
• 4-flute straight configuration for smooth, consistent cutting action
• Uncoated finish suitable for general machining applications
• Straight shank for direct chuck or collet mounting
• Compact 2-inch overall length with 0.5-inch flute length for rigidity in small-diameter work

Compatibility

Designed as a Series 272 OEM-style chucking reamer for machine tool spindles accepting a straight shank in the applicable diameter range. Suitable for use in CNC machining centers, drill presses, and manual lathes equipped with standard chucks or collet systems.

Installation Notes

This reamer is installed by qualified machinists or toolroom technicians. Ensure the machine spindle is fully stopped and the chuck or collet is clean and free of debris before mounting. Use proper speeds and feeds for the workpiece material and reamer diameter to prevent tool breakage or bore oversize. Solid carbide tooling is brittle and should not be used in setups with significant runout or lateral loading.
