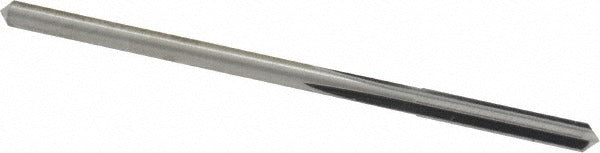

M.a. Ford. 27209370 Chucking Reamer 3/32 in Solid Carbide

Product Description

The M.A. FORD. 27209370 is a solid carbide chucking reamer designed for precision hole finishing in machine tool applications. With a reamer diameter of 0.0937 inches (3/32 inches) and a tight diameter tolerance of +0.0001 to +0.0003 inches, this tool delivers accurate, repeatable bore sizing in production and jobshop environments. The 4-flute straight flute geometry and right-hand cutting direction provide smooth material removal and clean hole finishes. The straight shank mounts directly in standard drill chucks or collets. Machinists and tool-and-die professionals use this reamer when bore accuracy and surface finish are critical requirements.

This chucking reamer is suited for use in CNC machining centers, drill presses, and manual lathes across a range of precision machining applications. The 1/2 inch flute length handles shallow to moderate depth bores, while the 2 inch overall length fits standard toolholding setups. The uncoated solid carbide construction performs well in non-ferrous metals, plastics, and other materials that benefit from carbide rigidity at small diameters. This tool is part of the M.A. FORD. Series 272 line.

Key Features

• Solid carbide construction provides rigidity and wear resistance at 0.0937 inch diameter
• Diameter tolerance of +0.0001 to +0.0003 inches for precise bore sizing
• 4-flute straight flute design for smooth cutting action and clean hole finish
• Right-hand spiral direction and right-hand cutting for standard machine spindle use
• Straight shank compatible with drill chucks and collet-style toolholders
• Uncoated finish suitable for a broad range of workpiece materials

Compatibility

Designed as a Series 272 chucking reamer for use in standard drill chucks and collet toolholders accepting straight shank tooling in the 3/32 inch diameter range.

Installation Notes

Installation is performed by machinists or tool operators in machine shop environments. Secure the straight shank in a properly sized collet or drill chuck and verify runout before production use. Power down and lock out the machine spindle before installing or removing the reamer. Avoid side-loading the tool, as solid carbide is rigid but brittle at small diameters and susceptible to breakage under lateral force.
