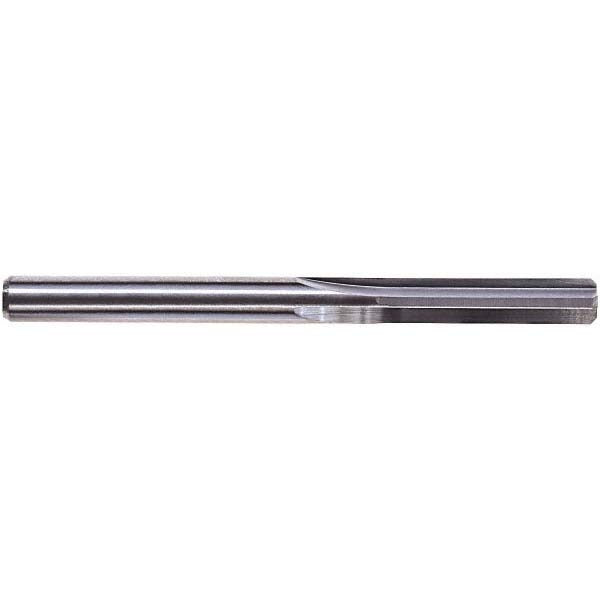

M.a. Ford 27209251 Chucking Reamer 0.0925 in Solid Carbide

Product Description

The M.A. FORD 27209251 is a solid carbide chucking reamer designed to finish-ream precision holes to tight tolerances in metalworking and machining applications. With a reamer diameter of 0.0925 inches and a diameter tolerance of +0.0001 to +0.0003 inches, this tool delivers consistent bore accuracy across production and maintenance work. The straight flute geometry and right-hand cutting direction make it well suited for through-hole and blind-hole reaming in a range of workpiece materials. At 2 inches overall length with a 0.5-inch flute length and a straight-cylindrical shank, the tool seats securely in standard chucks and collets. Machinists, tool-and-die makers, and maintenance technicians working in close-tolerance drilling operations will find this reamer a reliable production-grade choice.

This reamer is appropriate for small-diameter precision bore work in both job shop and production floor environments. The 0.0880-inch straight-cylindrical shank fits standard collet chucks and drill chucks used on lathes, milling machines, and drill presses. At this diameter range, the reamer is commonly used for reaming pin holes, instrument bores, and other fine-tolerance features in ferrous and non-ferrous metals. It carries a Series 272 designation from M.A. FORD and is noted as a modified standard configuration. Sold individually, this is a non-returnable and non-cancelable item per supplier policy.

Key Features

• Solid carbide construction for wear resistance and dimensional stability in precision bore work
• Diameter tolerance of +0.0001 to +0.0003 inches for tight, repeatable hole sizing
• 4-flute straight flute geometry with right-hand cutting direction
• Bright/uncoated finish suitable for a wide range of base materials without coating interference
• Straight-cylindrical shank at 0.0880 inches for secure seating in standard collets and drill chucks
• Compact 2-inch OAL with 0.5-inch flute length suited for shallow-reach reaming operations

Compatibility

Designed as an OEM-style solid carbide chucking reamer for use in standard collet and drill-chuck setups on lathes, milling machines, and drill presses requiring a 0.0925-inch finish-reamed bore diameter.

Installation Notes

Installation and use of this reamer should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and the chuck or collet is properly cleaned and torqued before seating the shank. Use appropriate cutting fluid for the workpiece material to reduce heat and extend tool life. Do not exceed recommended feed and speed parameters for the diameter and material combination, as solid carbide tooling at this diameter is sensitive to deflection and side loading.
