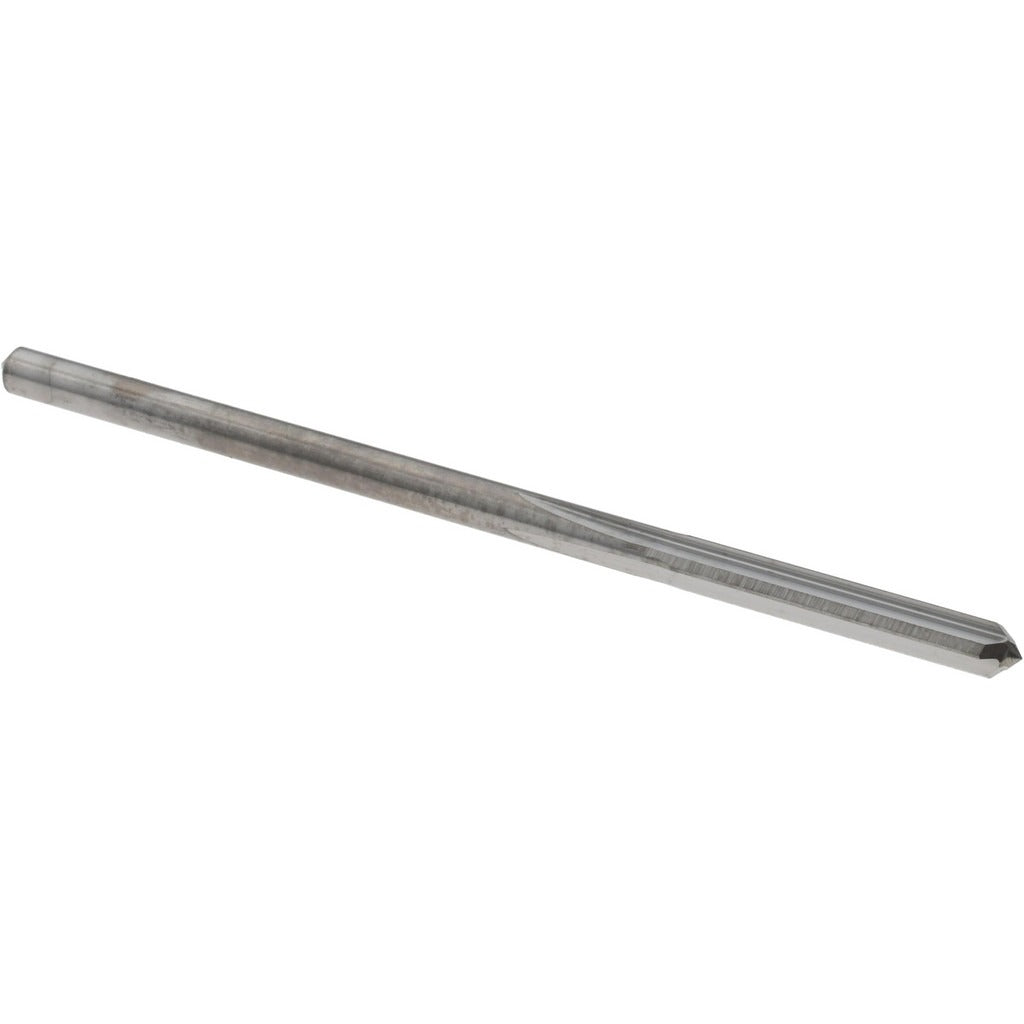

M.a. Ford 27209250 Chucking Reamer 2.35mm Solid Carbide

Product Description

The M.A. FORD 27209250 is a solid carbide chucking reamer designed to produce accurate, finished-diameter holes in precision machining applications. With a reamer diameter of 2.35mm (0.0925 decimal inch), a 4-flute straight flute geometry, and a right-hand cutting direction, this tool delivers controlled material removal and consistent bore quality in a single pass. The straight-cylindrical shank seats securely in standard drill chucks or collet holders. The bright, uncoated carbide construction is well-suited for machining ferrous and non-ferrous materials where a hard, wear-resistant cutting edge is required. This reamer is sold individually and is part of the M.A. FORD Series 272 line.

This reamer is intended for close-tolerance hole finishing in production and job-shop environments. The 2.35mm diameter falls within the 2.00mm to 3.00mm range, making it appropriate for small-bore work in components such as precision housings, instrument parts, and tooling fixtures. The 12.50mm flute length accommodates typical through-hole and shallow blind-hole depths at this diameter. Machinists and tool-and-die professionals working with CNC machining centers, drill presses, or manual lathes will find this tool appropriate for hand-reaming and machine reaming applications where dimensional accuracy is critical.

Key Features

• Solid carbide construction provides high wear resistance and dimensional stability in demanding cuts
• 4-flute straight flute geometry for smooth, consistent stock removal and improved hole finish
• Right-hand cutting direction compatible with standard machine spindle rotation
• Straight-cylindrical shank fits standard chucks and collet systems without special toolholders
• Bright, uncoated finish suitable for a broad range of workpiece materials
• Reamer diameter tolerance of +0.004 to +0.008mm for controlled oversize finishing

Compatibility

Designed as an OEM-style precision chucking reamer for use in standard drill chucks and collet holders accommodating a straight-cylindrical shank at the 2.35mm diameter range.

Installation Notes

Machine reaming should be performed by a qualified machinist following standard shop safety procedures. Ensure the spindle and workpiece are fully secured before engaging the tool. Pre-drill or bore the hole to the correct undersize prior to reaming to achieve the specified tolerance. Cutting fluid appropriate to the workpiece material is recommended to extend tool life and improve surface finish, though coolant-through capability is not available on this tool.
