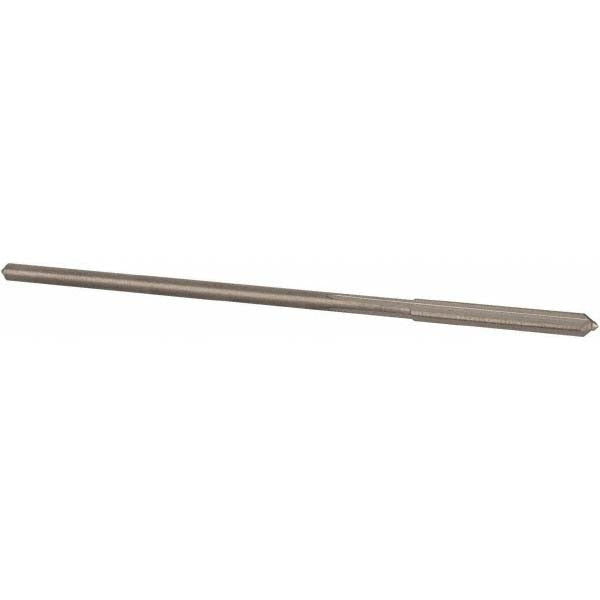

M.a. Ford. 27205850 Chucking Reamer 0.0585 in Solid Carbide

Product Description

The M.A. FORD. 27205850 is a solid carbide chucking reamer designed for precision hole finishing in machining operations. With a reamer diameter of 0.0585 inches and a close tolerance of +0.0001 to +0.0003 inches, it delivers accurate, consistent bore sizing in small-diameter applications. The 4-flute straight configuration and right-hand cutting direction provide smooth material removal. At 1.5 inches overall length with a 3/8-inch flute length, this reamer is built for compact work envelopes. It is used by machinists and tool-and-die professionals working with CNC machining centers, drill presses, or manual lathes where tight hole tolerances are required.

This chucking reamer is suited for small-diameter through-hole and blind-hole finishing in ferrous and non-ferrous materials. The uncoated solid carbide construction makes it appropriate for applications where dimensional accuracy is critical and high-speed steel tooling does not deliver sufficient rigidity or wear resistance. The straight shank mounts directly into standard chucks or collets without additional adapters, making it a straightforward drop-in tool for production and repair machining environments.

Key Features

• Solid carbide construction provides rigidity and wear resistance in demanding bore-finishing applications
• Reamer diameter of 0.0585 inches with tolerance of +0.0001/+0.0003 inches for precise hole sizing
• 4-flute straight configuration delivers smooth, consistent finish on the bore wall
• Right-hand cutting direction with straight shank for direct chuck or collet mounting
• Uncoated finish suitable for use across a range of ferrous and non-ferrous workpiece materials
• Compact overall length of 1.5 inches fits tight setups and short-reach machining scenarios

Compatibility

Designed as a standard chucking reamer for use in CNC machining centers, drill presses, and manual lathes accepting straight-shank tooling in small-diameter bore-finishing applications.

Installation Notes

This reamer should be installed by a qualified machinist following proper toolholding procedures for straight-shank cutting tools. Ensure the machine spindle is fully stopped and locked out before mounting or removing the tool. Secure the shank firmly in a compatible chuck or collet to the appropriate clamping torque per the toolholder manufacturer guidelines. Use adequate cutting fluid or coolant as appropriate for the workpiece material, and confirm correct spindle speed and feed rate before engaging the cut.
