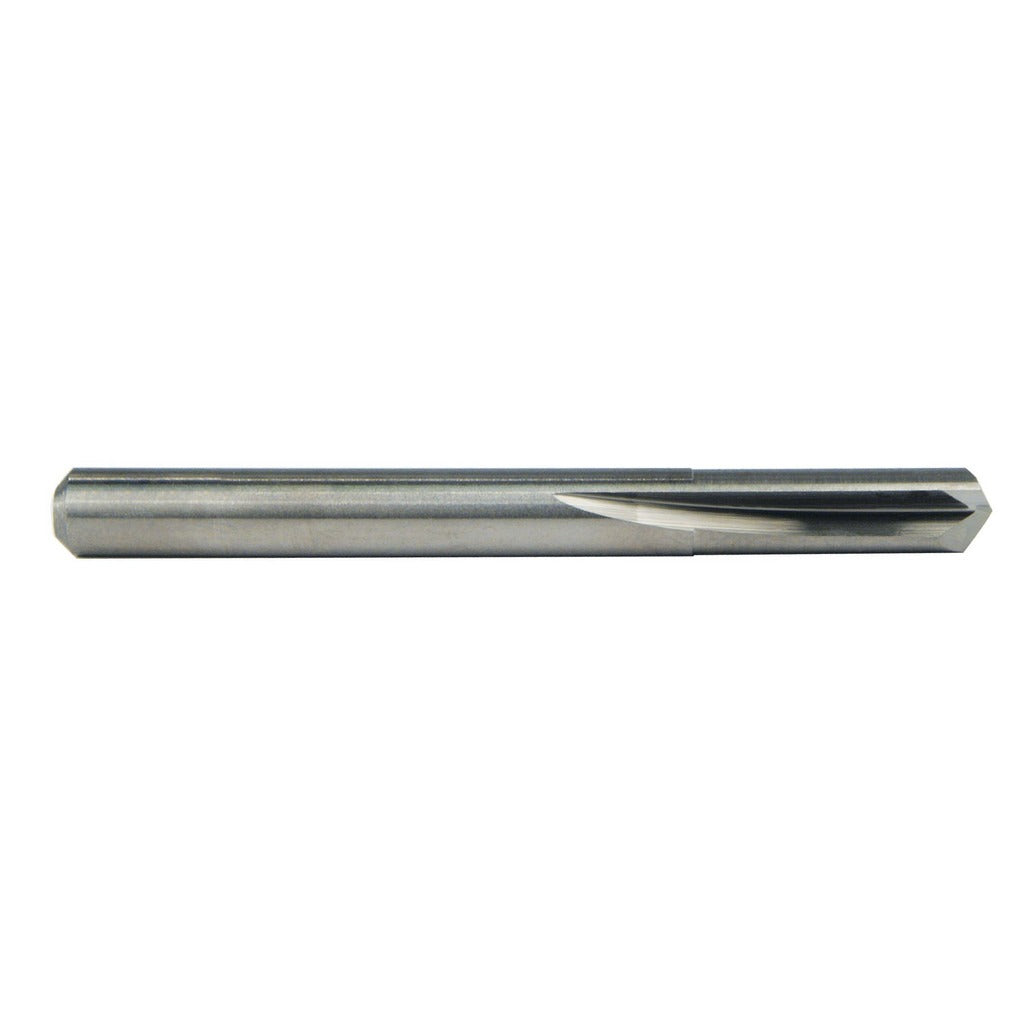

M.a. Ford 20010930 Carbide Die Drill Bit 7/64 in

Product Description

The M.A. FORD 20010930 is a solid carbide, straight-flute die drill bit designed for precision holemaking in hard and demanding workpiece materials. At 7/64 inch (0.1094 inch) diameter, it features a 135-degree split point with web thinning to reduce thrust and improve centering on entry. The uncoated carbide construction delivers rigidity and edge retention in applications where high-speed steel tooling falls short. With an overall length of 1.5 inches and a flute length of 0.625 inches, this bit is sized for close-quarter and die-work drilling applications. It is a right-hand cutting tool built to DIN standards and suited for use in machining centers, drill presses, and hand-held pneumatic tools used by toolmakers and machinists.

This drill bit is rated for use in cast iron, non-ferrous metals, stainless steel, alloy steel, austenitic stainless steel, hardened materials, high-temperature alloys, titanium, ceramic, and glass. It is well suited for die and mold work, precision toolroom applications, and production drilling where tight hole tolerances and repeatable performance are required. The 7/64 inch shank diameter and 7/8 inch shank length are compatible with standard collets and drill chucks used in toolroom and production environments.

Key Features

• Solid carbide construction for rigidity and edge retention in hard materials
• 135-degree split point with web thinning reduces entry thrust and improves self-centering
• Straight-flute geometry suited for short-hole and die drilling applications
• Uncoated finish maintains sharp edge geometry without coating buildup in tight tolerances
• Diameter tolerance of +0.0000 to -0.0005 inches ensures consistent fit in close-tolerance holes
• DIN standard construction for dimensional consistency across Series 200 tooling

Compatibility

Designed as an OEM-style toolroom drill bit for use with standard collets and drill chucks accepting a 0.1094 inch shank diameter. Suited for machining centers, CNC drill presses, and pneumatic hand tools used in die, mold, and precision holemaking applications.

Installation Notes
