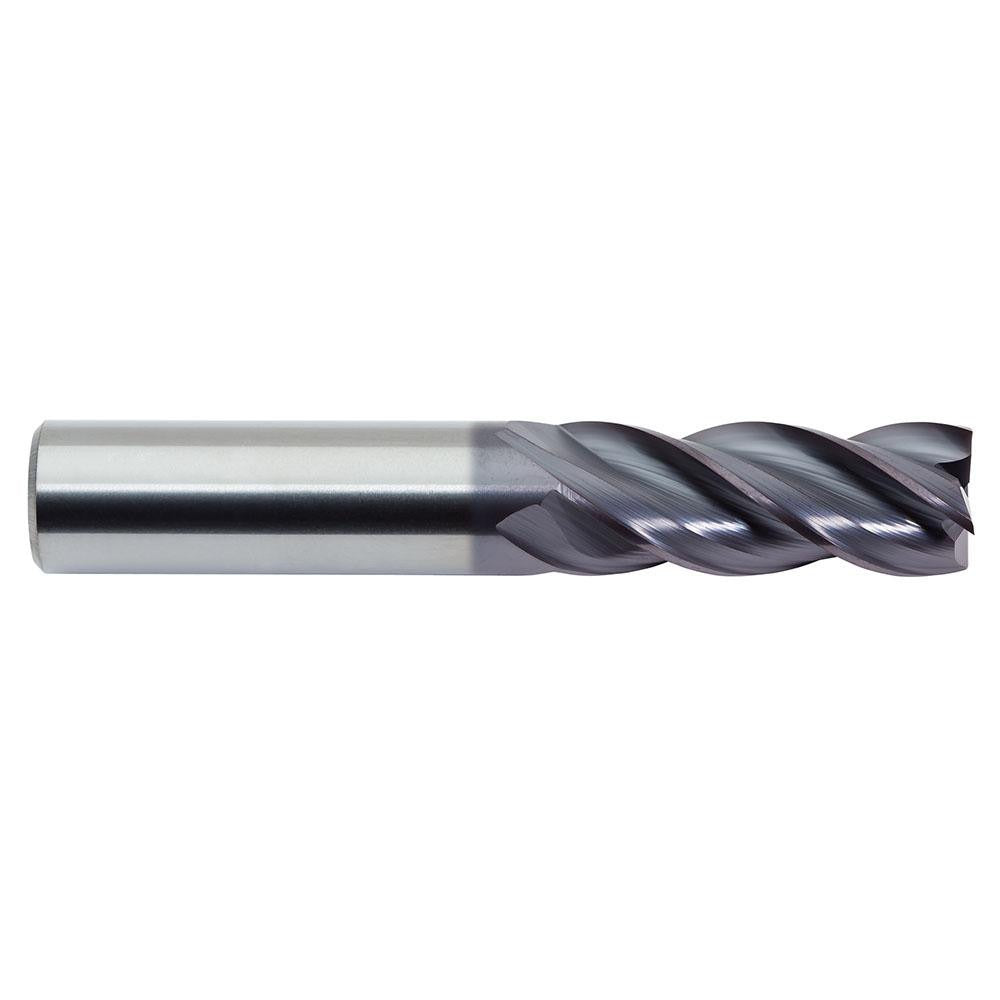

M.a. Ford. 17747206A Corner Radius End Mill 12mm 4FL

Product Description

The M.A. FORD. 17747206A is a solid carbide corner radius end mill designed for demanding material removal in steel, stainless steel, cast iron, superalloys, and titanium. Built to Series 177 specifications, it features a 12 mm cutting diameter, a 2.5 mm corner radius, and a variable helix flute geometry that reduces chatter and improves surface finish. The AlTiN-based PVD coating (M.A. FORD. proprietary designation: ALtima) extends tool life in high-heat, abrasive cutting environments. This end mill is single-ended, centercutting, and suited for both roughing and finishing operations. It is installed and operated by machinists in job shop, production, and tool room environments.

This tool is intended for use in CNC machining centers and milling machines equipped with a compatible straight-cylindrical toolholder. Typical applications include profiling, slotting, and contouring in ferrous and exotic alloy workpieces. The 26 mm length of cut and 83 mm overall length make it well-suited for standard-depth pockets and peripheral milling passes in steel and titanium components. The 4-flute right-hand spiral configuration supports efficient chip evacuation in typical machining conditions without coolant-through capability.

Key Features

• 12 mm cutting diameter with 2.5 mm corner radius for blend and radius milling
• Variable helix design reduces vibration and chatter during cutting
• AlTiN PVD coating (ALtima) improves heat resistance and wear life in ferrous and superalloy materials
• Centercutting geometry allows direct plunge entry
• 4 right-hand spiral flutes for roughing and finishing in a single tool
• Straight-cylindrical shank compatible with standard collet and hydraulic toolholders

Compatibility

Designed for use with straight-cylindrical toolholders accepting a 12 mm shank diameter. Suitable for machining steel, stainless steel, cast iron, superalloys, and titanium workpieces on CNC milling equipment.

Installation Notes

Installation and tool changes should be performed by qualified machinists with the spindle fully stopped and machine in a safe, locked-out state. Verify toolholder bore and collet size match the 12 mm shank diameter before mounting. Inspect the shank and collet contact surfaces for contamination or wear prior to clamping. Follow machine manufacturer torque specifications for the toolholder style in use.
