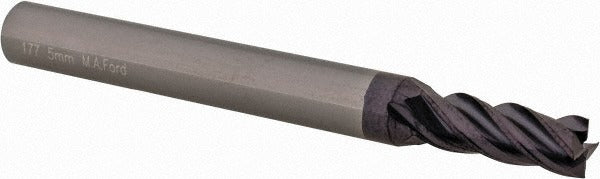

M.a. Ford. 17719600A Square End Mill 5mm 4 Flute Tialn

Product Description

The M.A. FORD. 17719600A is a solid carbide square end mill designed for precision material removal in professional machining applications. With a 5 mm cutting diameter and a 13 mm length of cut, this single-end tool operates on a 6 mm straight-cylindrical shank and measures 57 mm in overall length. The four-flute geometry combined with a variable helix and variable index design reduces chatter and harmonics during high-speed cutting passes. The micrograin carbide substrate supports edge sharpness retention at elevated cutting temperatures, and the TiAlN coating adds oxidation resistance for dry and semi-dry machining environments. This tool is installed by CNC machinists and tool-and-die professionals in production and job-shop settings.

The 17719600A is suited for milling hardened steels, cast irons, stainless steels, carbon steels, and high-temperature alloys. Its primary workpiece material codes cover H, K, M, P, and S material groups, making it a versatile choice across a range of ferrous and exotic alloy applications. The centercutting capability allows direct plunge entry, and the right-hand cutting and right-hand flute direction are standard for conventional CNC spindle configurations. Series 177 tooling from M.A. FORD. is engineered for demanding finishing and semi-finishing passes where surface integrity and dimensional accuracy are priorities.

Key Features

• 5 mm cutting diameter with a plus 0.000 / minus 0.048 mm mill diameter tolerance for controlled fit
• Variable helix and variable index geometry reduces vibration and improves surface finish
• TiAlN coating provides oxidation resistance and extends tool life in dry cutting conditions
• Micrograin solid carbide substrate maintains edge integrity in hard and abrasive workpiece materials
• Centercutting design allows direct plunge entry without a pre-drilled hole
• Straight-cylindrical shank with plus 0 / minus 0.008 mm shank diameter tolerance for secure collet grip

Compatibility

Compatible with CNC machining centers and manual mills using ER collet chucks or end mill holders sized for a 6 mm straight-cylindrical shank. Suitable for workpiece material groups H, K, M, P, and S as designated in the supplier specifications.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's toolholding torque and runout specifications. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Use a clean, undamaged collet or end mill holder to maintain concentricity and prevent premature tool wear. Verify runout at the cutting edge with a dial indicator before beginning a production run.
