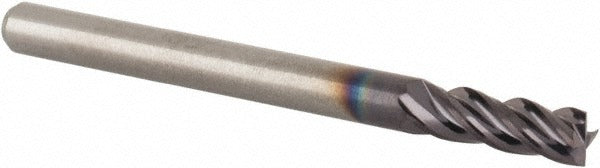

M.a. Ford 17712510A Square End Mill 0.125in 4 Flute Carbide

Product Description

The M.A. FORD 17712510A is a solid carbide square end mill designed for precision milling operations across a broad range of workpiece materials. With a 0.125 inch mill diameter, 0.375 inch length of cut, and 1.5 inch overall length, this single-end tool delivers tight tolerances with a mill diameter tolerance of +0.000/-0.002 inches. The micrograin carbide construction paired with a TiAlN coating provides heat resistance and extended tool life in demanding cutting conditions. Four spiral flutes with a variable helix and variable index geometry reduce chatter and improve chip evacuation. The straight cylindrical shank measures 0.125 inches in diameter for secure tool holding in standard collet systems.

This end mill is suited for use in CNC machining centers and manual mills where small-diameter finish and profile milling are required. Primary workpiece material codes include H, K, M, P, and S, covering cast irons, non-ferrous metals, stainless steels, carbon and alloy steels, and high-temperature alloys. It belongs to M.A. FORD Series 177, a line built for applications demanding consistent performance in tight-tolerance work. Machinists and tool room professionals running production or prototype work will find this tool well-matched to both roughing and finishing passes at small diameters.

Key Features

• Solid micrograin carbide construction for rigidity and wear resistance
• TiAlN coating extends tool life in high-heat cutting applications
• Variable helix and variable index geometry reduce vibration and chatter
• Center-cutting capable — allows direct plunge entry into workpiece
• Right-hand cut with right-hand spiral flute direction
• Straight cylindrical shank with tight tolerance: +0/-0.00031 inches

Compatibility

Designed as an OEM-specification replacement or direct tooling option within M.A. FORD Series 177, compatible with standard 1/8 inch collets and tool holders used in CNC and manual milling applications.

Installation Notes

Installation should be performed by a qualified machinist or toolroom professional. Ensure the spindle is fully stopped and the machine is locked out before changing tooling. Seat the shank fully in a clean, undamaged collet or end mill holder and torque the retention mechanism to the tool holder manufacturer's specification. Verify runout with a dial indicator before beginning the cut, as runout at small diameters significantly affects tool life and surface finish.
